CMake+QT+大漠插件的桌面应用开发（QThread）

简介

在CMake+QT+大漠插件的桌面应用开发中已经给出了QT配合大漠插件开发桌面应用的样例
不过由于主窗口的UI操作和大漠的调用是在一个线程里面的，所以当大漠调用时间过长时会出现UI界面卡顿的现象
我们可以利用子线程处理耗时操作，处理完后再由主线程（UI线程）更新界面，这样界面就不会出现卡顿。

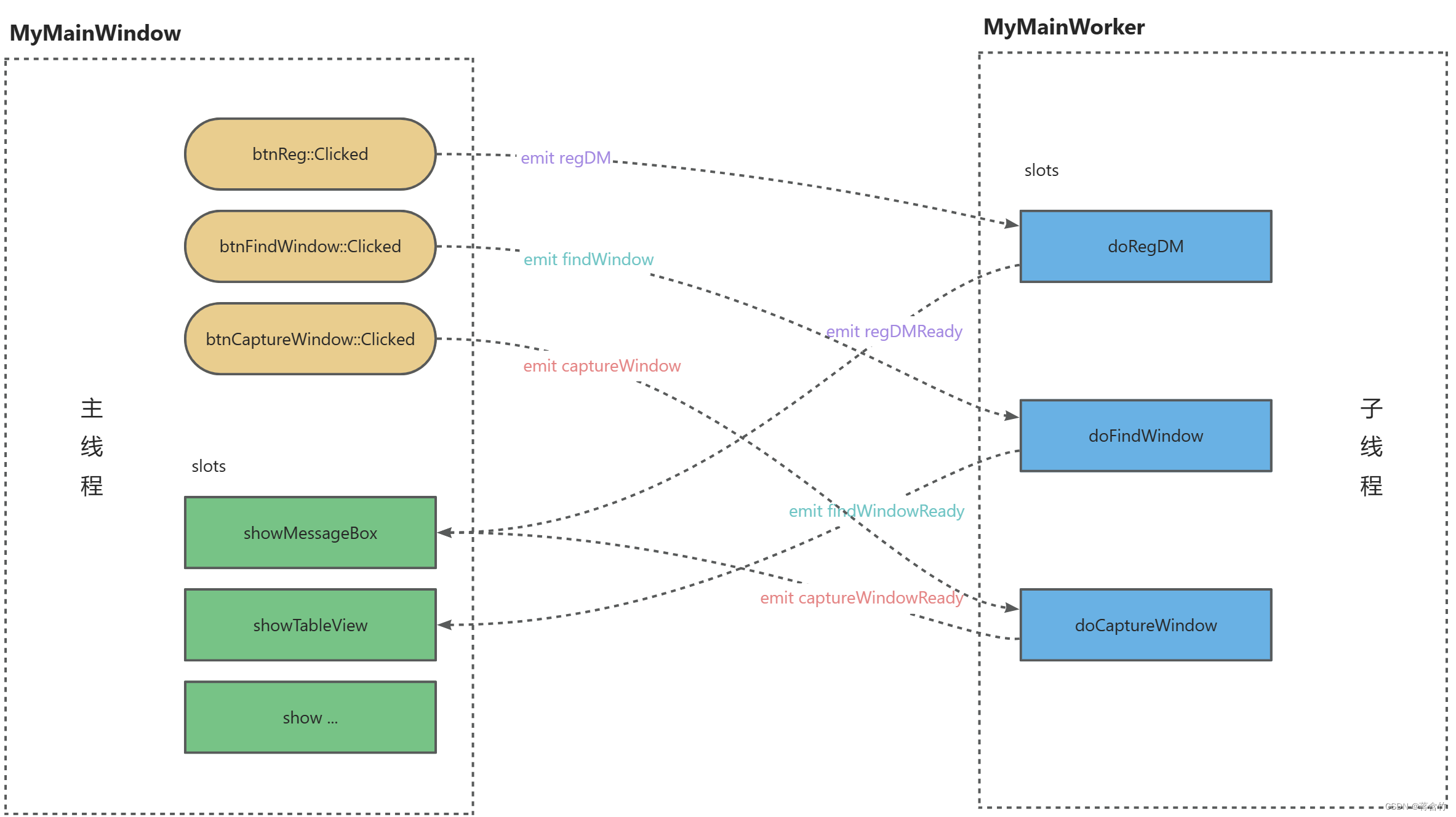

在这里，我们将会用到QThread，调整后的QT主线程与子线程交互逻辑图如下：

交互逻辑描述

当点击“注册”选项时，会发出regDM信号，子线程接收到该信号会执行MyMainWorker中的doRegDM方法，执行完成后会发出regDMReady信号，主线程接收到该信号会执行更新UI的操作
当点击“搜索”按钮时，同理

当点击“截图”按钮时，同理

环境

	版本/规范	备注
平台	win32	操作系统为Windows10
CMake	3.27.8	CLion自带
C++	17
Toolchain	VisualStudio 2022	只用其工具链，记得先安装好
QT	5.12.12	安装时选择msvc2017，不要64位的
DM	7.2353
CLion	2023.3.2	你也可以用其他IDE工具

启动IDE时，记得以管理员模式启动

项目结构

新建一个项目 qt_dm_demo_x_02

目录同CMake+QT+大漠插件的桌面应用开发中一致，会多出MyMainWorker，用于处理子线程逻辑

qt_dm_demo_x_02					             # 项目目录
-- ......
--MyMainWorker.cpp
--MyMainWorker.h
-- ......

配置编译环境

其他同CMake+QT+大漠插件的桌面应用开发中一致

CMakeLists.txt 文件中生成可执行文件时，会多出MyMainWorker.cpp、MyMainWorker.h

# 生成可执行文件
add_executable(${PROJECT_NAME} main.cpp
        strutils.cpp strutils.h
        dmutil.cpp dmutil.h
        mymainwindow.cpp mymainwindow.h mymainwindow.ui
        MyMainWorker.cpp MyMainWorker.h
)

代码

dmutil.h、dmutil.cpp、strutils.h、strutils.cpp、mymainwindow.ui、main.cpp同CMake+QT+大漠插件的桌面应用开发中一致

mymainwindow.h

#ifndef QT_DM_DEMO_X_MYMAINWINDOW_H
#define QT_DM_DEMO_X_MYMAINWINDOW_H
#include
#include
#include
#include "dmutil.h"
QT_BEGIN_NAMESPACE
namespace Ui { class MyMainWindow; }
QT_END_NAMESPACE
class MyMainWindow : public QMainWindow {
Q_OBJECT
    QThread workerThread;
public:
    explicit MyMainWindow(QWidget *parent = nullptr);
    ~MyMainWindow() override;
public:
    void showInfo(const QString &message, const QString &title = "提示");
    void showWarn(const QString &message, const QString &title = "告警");
signals:
    void regDM(Idmsoft **pDm);
    void findWindow(Idmsoft *pDm, const QString &title);
    void captureWindow(Idmsoft *pDm, const long hwnd);
public slots:
    void showMessageBox(bool result, const QString &message);
    void showTable(bool result, const QString &msg, const vector &windowVec);
private:
    Ui::MyMainWindow *ui;
    Idmsoft *pCommonDm = nullptr;
};
#endif //QT_DM_DEMO_X_MYMAINWINDOW_H

mymainwindow.cpp

// You may need to build the project (run Qt uic code generator) to get "ui_MyMainWindow.h" resolved
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include "mymainwindow.h"
#include "ui_MyMainWindow.h"
#include "MyMainWorker.h"
using namespace std;
MyMainWindow::MyMainWindow(QWidget *parent) :
        QMainWindow(parent), ui(new Ui::MyMainWindow) {
    ui->setupUi(this);
    qRegisterMetaType>("QVector");
    qRegisterMetaType>("vector");
    // Init Views
    setFixedSize(1280, 720);
    ui->tableWidget->setColumnCount(3);
    ui->tableWidget->setHorizontalHeaderLabels(QStringList() << "进程ID" << "句柄" << "标题");
    ui->tableWidget->horizontalHeader()->setStretchLastSection(true); // 最后一列自动铺满表格
    // ui->tableWidget->horizontalHeader()->setSectionResizeMode(1, QHeaderView::Stretch);
    ui->tableWidget->horizontalHeader()->setHighlightSections(false);
    ui->tableWidget->horizontalHeader()->setStyleSheet("QHeaderView::section{background:gray;}");
    ui->tableWidget->setSelectionMode(QAbstractItemView::SingleSelection);
    QFont font = ui->tableWidget->horizontalHeader()->font();
    font.setBold(true);
    ui->tableWidget->horizontalHeader()->setFont(font);
    ui->tableWidget->setStyleSheet("QTableWidget::item:hover { background-color: lightblue; }");
    ui->tableWidget->setEditTriggers(QAbstractItemView::NoEditTriggers); // 禁止编辑
    ui->tableWidget->setSelectionBehavior(QAbstractItemView::SelectRows); // 选中整行
    // Init Listener
    auto worker = new MyMainWorker;
    worker->moveToThread(&workerThread);
    connect(&workerThread, &QThread::finished, worker, &QObject::deleteLater);
    // 注册大漠
    connect(ui->actionReg, &QAction::triggered, [this]() {
        ui->actionReg->setEnabled(false);
        emit this->regDM(&this->pCommonDm);
    });
    connect(this, &MyMainWindow::regDM, worker, &MyMainWorker::doRegDM);
    connect(worker, &MyMainWorker::regDMReady, this, &MyMainWindow::showMessageBox);
    // 查找窗口
    connect(ui->btnQuery, &QPushButton::clicked, [this]() {
        ui->btnQuery->setEnabled(false);
        emit this->findWindow(this->pCommonDm, ui->edtTitle->text());
    });
    connect(this, &MyMainWindow::findWindow, worker, &MyMainWorker::doFindWindow);
    connect(worker, &MyMainWorker::findWindowReady, this, &MyMainWindow::showTable);
    // 截图
    connect(ui->btnCapture, &QPushButton::clicked, [this]() {
        ui->btnCapture->setEnabled(false);
        // 获取选中行的句柄列的字段
        const QList &selectedItems = ui->tableWidget->selectedItems();
        if (selectedItems.size() >= 2) {
            QTableWidgetItem *item = selectedItems.at(1);
            const QString &hwnd = item->data(Qt::DisplayRole).toString();
            bool res = false;
            long hwndL = hwnd.toLong(&res, 0);
            cout << res << endl;
            if (res) {
                emit this->captureWindow(this->pCommonDm, hwndL);
            } else {
                ui->btnCapture->setEnabled(true);
                this->showWarn("选中行的窗口句柄解析异常！");
            }
        } else {
            ui->btnCapture->setEnabled(true);
            this->showWarn("请选中列表中的其中一行！");
        }
    });
    connect(this, &MyMainWindow::captureWindow, worker, &MyMainWorker::doCaptureWindow);
    connect(worker, &MyMainWorker::captureWindowReady, this, &MyMainWindow::showMessageBox);
    workerThread.start();
}
MyMainWindow::~MyMainWindow() {
    delete ui;
    workerThread.quit();
    workerThread.wait();
}
void MyMainWindow::showInfo(const QString &message, const QString &title) {
    QMessageBox::information(this, title, message);
}
void MyMainWindow::showWarn(const QString &message, const QString &title) {
    QMessageBox::critical(this, title, message);
}
void MyMainWindow::showMessageBox(const bool result, const QString& message) {
    ui->actionReg->setEnabled(true);
    ui->btnCapture->setEnabled(true);
    if (result) {
        this->showInfo(message);
    } else {
        this->showWarn(message);
    }
}
void MyMainWindow::showTable(const bool result, const QString &msg, const vector &windowVec) {
    ui->btnQuery->setEnabled(true);
    if (result) {
        auto rowNum = windowVec.size();
        ui->tableWidget->setRowCount(rowNum);
        for (int i = 0; i < rowNum; ++i) {
            const MyWindow &item = windowVec[i];
            ui->tableWidget->setItem(i, 0, new QTableWidgetItem(QString::number(item.processId)));
            ui->tableWidget->setItem(i, 1, new QTableWidgetItem(QString::number(item.hwnd)));
            ui->tableWidget->setItem(i, 2, new QTableWidgetItem(QString::fromStdWString(item.title)));
        }
    } else {
        this->showWarn(msg);
    }
}

MyMainWorker.h

#ifndef QT_DM_DEMO_X_MYMAINWORKER_H
#define QT_DM_DEMO_X_MYMAINWORKER_H
#include
#include "dmutil.h"
class MyMainWorker: public QObject {
Q_OBJECT
signals:
    void regDMReady(const bool result, const QString &msg);
    void findWindowReady(const bool result, const QString &msg, const vector  &windowVec);
    void captureWindowReady(const bool result, const QString &msg);
public slots:
    /**
     * 注册大漠
     * @param pDm 大漠插件，待赋值
     */
    void doRegDM(Idmsoft **pDm);
    /**
     * 查询匹配的窗口
     * @param pDm 大漠插件
     * @param title 窗口标题（模糊查询）
     */
    void doFindWindow(Idmsoft *pDm, const QString &title);
    /**
     * 对窗口截图
     * @param pDm 大漠插件
     * @param hwnd 窗口句柄
     */
    void doCaptureWindow(Idmsoft *pDm, long hwnd);
};
#endif //QT_DM_DEMO_X_MYMAINWORKER_H

MyMainWorker.cpp

#include
#include "MyMainWorker.h"
using namespace std;
void MyMainWorker::doRegDM(Idmsoft **pDm) {
    cout << "========== Initial DM ............ ==========" << endl;
    *pDm = initialDMAndRegVIP();
    if (*pDm == nullptr) {
        cout << "========== Initial DM      ==========" << endl;
        emit this->regDMReady(false, "DM 注册失败！");
        return;
    }
    cout << "========== Initial DM  ==========" << endl;
    cout << endl;
    emit this->regDMReady(true, "DM 注册完成！");
}
void MyMainWorker::doFindWindow(Idmsoft *pDm, const QString &title) {
    vector windowVec;
    if (pDm == nullptr) {
        cout << "this->pCommonDm == nullptr" << endl;
        emit this->findWindowReady(false, "请先在菜单中完成注册！", windowVec);
        return;
    }
    // 找一下包含title的窗口
    getMatchedWindows(windowVec, pDm, title.toStdWString());
    if (windowVec.empty()) {
        cout << "can not find such window" << endl;
        emit this->findWindowReady(false, "没有找到包含该标题的窗口！", windowVec);
        return;
    }
    emit this->findWindowReady(true, "成功！", windowVec);
}
void MyMainWorker::doCaptureWindow(Idmsoft *pDm, long hwnd) {
    if (pDm == nullptr) {
        cout << "this->pCommonDm == nullptr" << endl;
        emit this->captureWindowReady(false, "请先在菜单中完成注册！");
        return;
    }
    // 绑定窗口句柄
    long dmBind = pDm->BindWindowEx(
            hwnd,
            "normal",
            "normal",
            "normal",
            "",
            0
    );
    if (dmBind == 1) {
        // 恢复并激活指定窗口，置顶窗口，
        pDm->SetWindowState(hwnd, 12);
        pDm->SetWindowState(hwnd, 8);
        pDm->delay(600);
        // 延迟一下截图，存到相对路径
        wstring filename = wstring(L"./capture_window_").append(std::to_wstring(hwnd)).append(L".bmp");
        long retCap = pDm->Capture(0, 0, 2000, 2000, filename.c_str());
        if (retCap != 1) {
            cout << "capture failed" << endl;
            emit this->captureWindowReady(false, "截图失败！");
        } else {
            cout << "capture success" << endl;
            emit this->captureWindowReady(true, QString::fromStdWString(L"截图成功，保存地址为： " + filename));
        }
        // 取消置顶窗口
        pDm->SetWindowState(hwnd, 9);
    } else {
        cout << "DM BindWindow failed" << endl;
        emit this->captureWindowReady(false, "绑定窗口异常！");
    }
    pDm->UnBindWindow();
}
