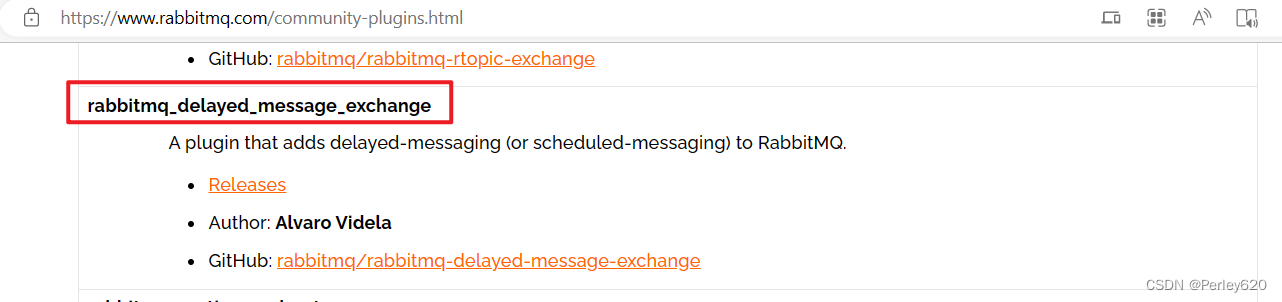

          • • 访问官网
            • 进入rabbitmq docker容器
            • 上传到linux服务器
            • 拷贝插件到容器中

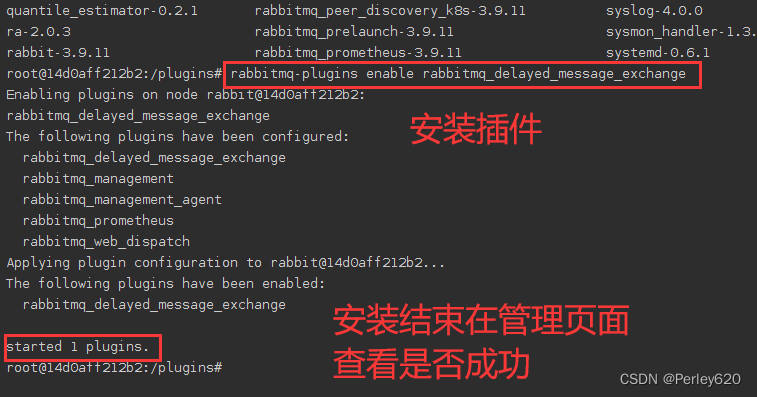

            • 进入容器安装插件
            • 打开管理页面
            • 总结

              引出

              ---

              1.rabbitmq队列方式的梳理，点对点，一对多；

              2.发布订阅模式，交换机到消费者，以邮箱和手机验证码为例；

              3.topic模式，根据规则决定发送给哪个队列；

              4.rabbitmq回调确认，setConfirmCallback和setReturnsCallback；

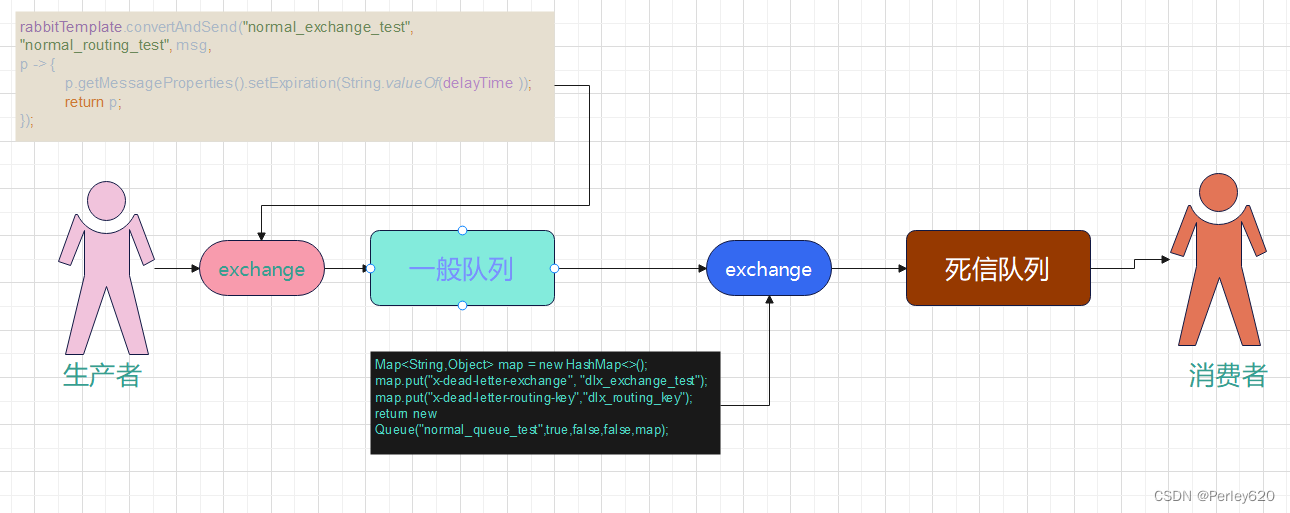

              5.死信队列，延迟队列，创建方法，正常—死信，设置延迟时间；

              点对点(simple)

              点对对方式传输

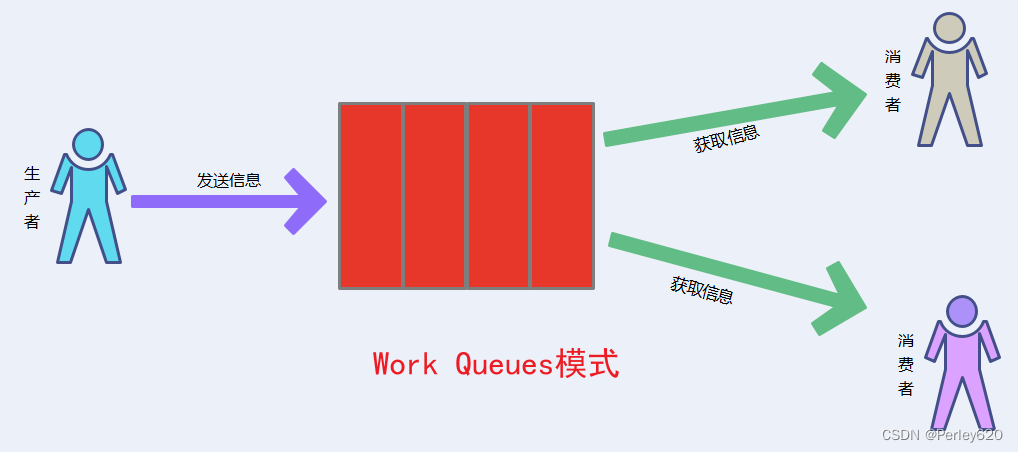

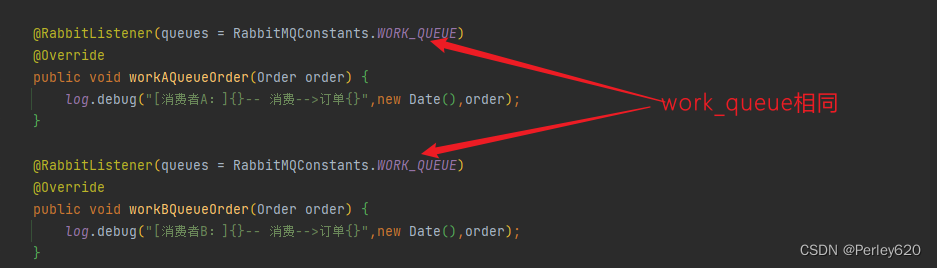

              Work queues 一对多

              1个生产者多个消费者





              发布订阅/fanout模式

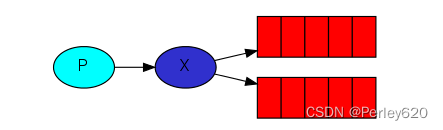

              生产者通过fanout扇出交换机群发消息给消费者，同一条消息每一个消费者都可以收到。



              以登陆验证码为例

              pom文件导包



                          org.springframework.boot
                          spring-boot-starter-mail



                          com.aliyun
                          aliyun-java-sdk-core
                          4.5.3



                          org.springframework.boot
                          spring-boot-starter-amqp



              application.yml文件

              server:
                port: 9099
              spring:
                # 模块的名字
                application:
                  name: user-auth
                # 邮箱的配置
                mail:
                  host: smtp.qq.com
                  port: 587
                  username: xxxx
                  password: xxxxx
                # rabbitmq的配置
                rabbitmq:
                  host: 192.168.111.130
                  port: 5672
                  username: admin
                  password: 123
              logging:
                level:
                  com.tianju.auth: debug


              rabbitmq的配置

              需要用到的常量

              package com.tianju.auth.util;
              /**
               * rabbitmq的常量
               */
              public interface RabbitMqConstants {
                  String MQ_MAIL_QUEUE="mq_email_queue";
                  String MQ_PHONE_QUEUE="mq_phone_queue";
                  String MQ_FANOUT_EXCHANGE="mq_fanout_exchange";
                  // 参数 String name, boolean durable, boolean exclusive, boolean autoDelete
                  boolean durable = true;
                  boolean exclusive = false;
                  boolean autoDelete = false;
              }


              RabbitMqConfig.java配置

              邮箱队列，电话队列，交换机；

              邮箱绑定交换机，电话绑定交换机；

              创建队列参数说明：

              参数	说明
              name	字符串值，queue的名称。
              durable	布尔值，表示该 queue 是否持久化。 持久化意味着当 RabbitMQ 重启后，该 queue 是否会恢复/仍存在。 另外，需要注意的是，queue 的持久化不等于其中的消息也会被持久化。
              exclusive	布尔值，表示该 queue 是否排它式使用。排它式使用意味着仅声明他的连接可见/可用，其它连接不可见/不可用。
              autoDelete	布尔值，表示当该 queue 没“人”（connection）用时，是否会被自动删除。

              不指定 durable、exclusive 和 autoDelete 时，默认为 true 、 false 和 false 。表示持久化、非排它、不用自动删除。

              创建交换机参数说明

              参数	说明
              name	字符串值，exchange 的名称。
              durable	布尔值，表示该 exchage 是否持久化。 持久化意味着当 RabbitMQ 重启后，该 exchange 是否会恢复/仍存在。
              autoDelete	布尔值，表示当该 exchange 没“人”（queue）用时，是否会被自动删除。

              不指定 durable 和 autoDelete 时，默认为 true 和 false 。表示持久化、不用自动删除

              package com.tianju.auth.config;
              import com.tianju.auth.util.RabbitMqConstants;
              import org.springframework.amqp.core.Binding;
              import org.springframework.amqp.core.BindingBuilder;
              import org.springframework.amqp.core.FanoutExchange;
              import org.springframework.amqp.core.Queue;
              import org.springframework.context.annotation.Bean;
              import org.springframework.context.annotation.Configuration;
              @Configuration
              public class RabbitMqConfig {
                  @Bean // 邮箱的队列
                  public Queue mailQueue(){
                      return new Queue(RabbitMqConstants.MQ_MAIL_QUEUE,
                              RabbitMqConstants.durable,
                              RabbitMqConstants.exclusive,
                              RabbitMqConstants.autoDelete);
                  }
                  @Bean // 电话的队列
                  public Queue phoneQueue(){
                      return new Queue(RabbitMqConstants.MQ_PHONE_QUEUE,
                              RabbitMqConstants.durable,
                              RabbitMqConstants.exclusive,
                              RabbitMqConstants.autoDelete);
                  }
                  @Bean // 交换机
                  public FanoutExchange fanoutExchange(){
                      return new FanoutExchange(RabbitMqConstants.MQ_FANOUT_EXCHANGE,
                              RabbitMqConstants.durable,
                              RabbitMqConstants.autoDelete);
                  }
                  @Bean
                  public Binding mailBinding(){
                      return BindingBuilder.bind(mailQueue())
                              .to(fanoutExchange());
                  }
                  @Bean
                  public Binding phoneBinding(){
                      return BindingBuilder.bind(phoneQueue())
                              .to(fanoutExchange());
                  }
              }


              生产者生成验证码，发送给交换机

              接口

              package com.tianju.auth.service;
              public interface IUserService {
                  /**
                   * 生产者生成信息发送给交换机
                   * @param msg 信息，这里是验证码
                   */
                  void sendCode(String msg);
              }


              实现

              package com.tianju.auth.service.impl;
              import com.tianju.auth.service.IUserService;
              import com.tianju.auth.util.RabbitMqConstants;
              import lombok.extern.slf4j.Slf4j;
              import org.springframework.amqp.rabbit.core.RabbitTemplate;
              import org.springframework.beans.factory.annotation.Autowired;
              import org.springframework.stereotype.Service;
              import java.util.ArrayList;
              import java.util.List;
              @Service
              @Slf4j
              public class UserServiceImpl implements IUserService {
                  @Autowired
                  private RabbitTemplate rabbitTemplate;
                  @Override
                  public void sendCode(String msg) {
                      rabbitTemplate.convertAndSend(
                              RabbitMqConstants.MQ_FANOUT_EXCHANGE,
                              "routingkey.fanout",
                              msg);
                      log.debug("[生产者向交换机：] 发送一条信息：{}",msg);
                  }
              }

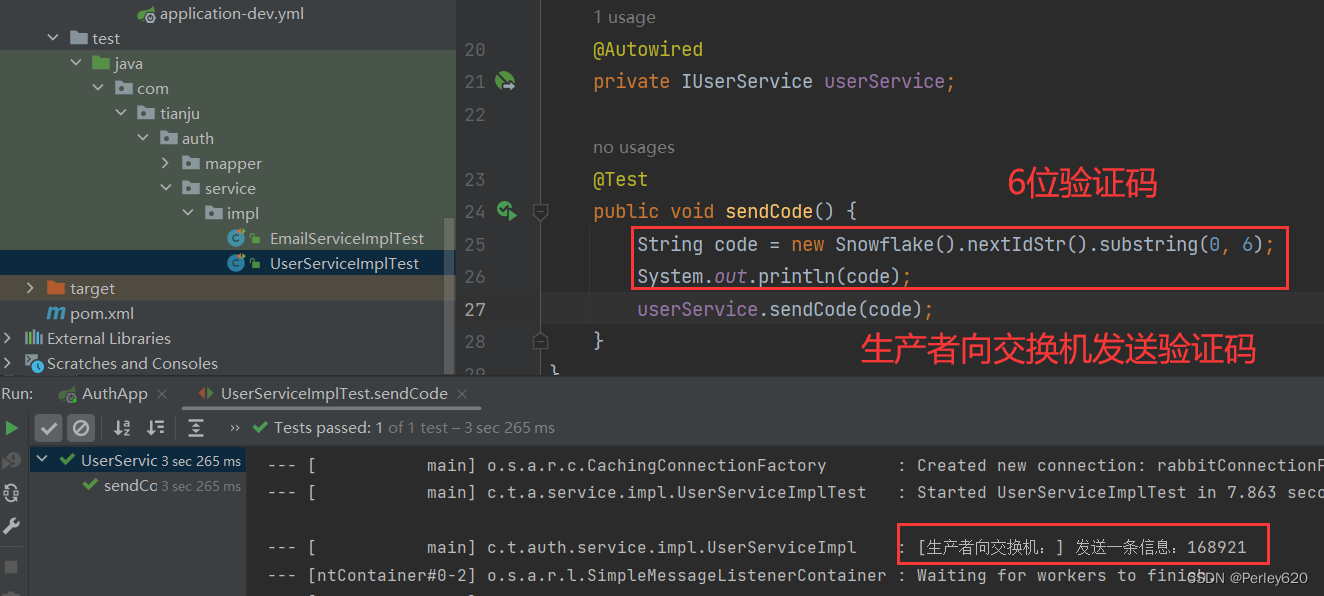

              测试类生成验证码，发给交换机



              package com.tianju.auth.service.impl;
              import cn.hutool.core.lang.Snowflake;
              import com.tianju.auth.service.IUserService;
              import org.junit.Test;
              import org.junit.runner.RunWith;
              import org.springframework.beans.factory.annotation.Autowired;
              import org.springframework.boot.test.context.SpringBootTest;
              import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
              @SpringBootTest
              @RunWith(SpringJUnit4ClassRunner.class)
              public class UserServiceImplTest {
                  @Autowired
                  private IUserService userService;
                  @Test
                  public void sendCode() {
                      String code = new Snowflake().nextIdStr().substring(0, 6);
                      System.out.println(code);
                      userService.sendCode(code);
                  }
              }

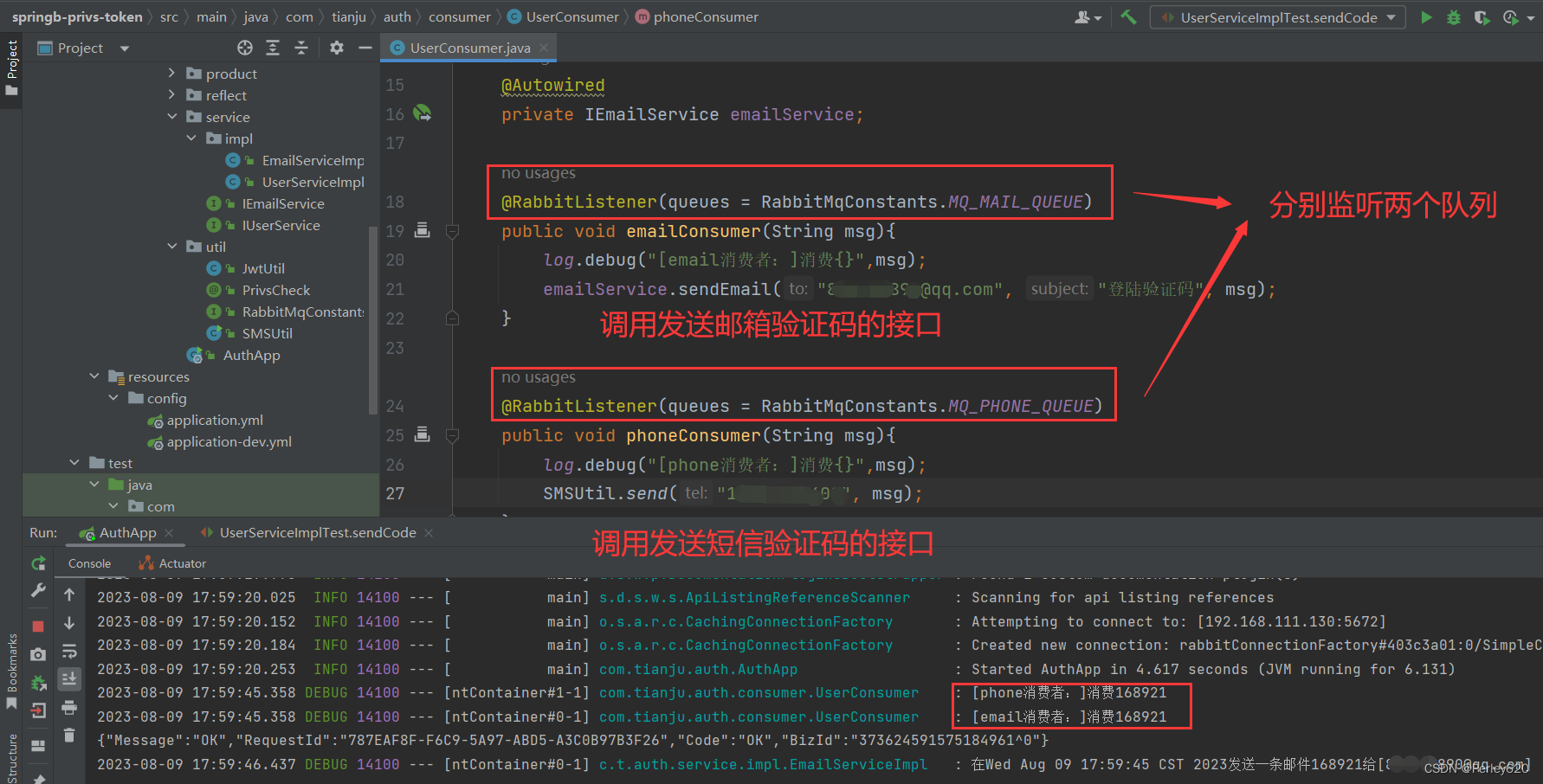

              消费者消费验证码

              package com.tianju.auth.consumer;
              import com.tianju.auth.service.IEmailService;
              import com.tianju.auth.util.RabbitMqConstants;
              import com.tianju.auth.util.SMSUtil;
              import lombok.extern.slf4j.Slf4j;
              import org.springframework.amqp.rabbit.annotation.RabbitListener;
              import org.springframework.beans.factory.annotation.Autowired;
              import org.springframework.stereotype.Service;
              @Slf4j
              @Service
              public class UserConsumer {
                  @Autowired
                  private IEmailService emailService;
                  @RabbitListener(queues = RabbitMqConstants.MQ_MAIL_QUEUE)
                  public void emailConsumer(String msg){
                      log.debug("[email消费者：]消费{}",msg);
                      emailService.sendEmail("xxxx@qq.com", "登陆验证码", msg);
                  }
                  @RabbitListener(queues = RabbitMqConstants.MQ_PHONE_QUEUE)
                  public void phoneConsumer(String msg){
                      log.debug("[phone消费者：]消费{}",msg);
                      SMSUtil.send("xxxx", msg);
                  }
              }




              topic模式



              例如： routingkey: my.orange.rabbit —-> Q1,Q2



              配置类增加配置

              package com.tianju.auth.util;
              /**
               * rabbitmq的常量
               */
              public interface RabbitMqConstants {
                  String MQ_MAIL_QUEUE="mq_email_queue";
                  String MQ_PHONE_QUEUE="mq_phone_queue";
                  String MQ_FANOUT_EXCHANGE="mq_fanout_exchange";

                  String MQ_TOPIC_EXCHANGE="mq_topic_exchange";
                  String MQ_TOPIC_QUEUE_A = "mq_topic_queue_a";
                  String MQ_TOPIC_QUEUE_B = "mq_topic_queue_b";
                  // 参数 String name, boolean durable, boolean exclusive, boolean autoDelete
                  boolean durable = true;
                  boolean exclusive = false;
                  boolean autoDelete = false;
              }


              package com.tianju.auth.config;
              import com.tianju.auth.util.RabbitMqConstants;
              import org.springframework.amqp.core.*;
              import org.springframework.context.annotation.Bean;
              import org.springframework.context.annotation.Configuration;
              @Configuration
              public class RabbitMqConfig {
                  @Bean // 邮箱的队列
                  public Queue mailQueue(){
                      return new Queue(RabbitMqConstants.MQ_MAIL_QUEUE,
                              RabbitMqConstants.durable,
                              RabbitMqConstants.exclusive,
                              RabbitMqConstants.autoDelete);
                  }
                  @Bean // 电话的队列
                  public Queue phoneQueue(){
                      return new Queue(RabbitMqConstants.MQ_PHONE_QUEUE,
                              RabbitMqConstants.durable,
                              RabbitMqConstants.exclusive,
                              RabbitMqConstants.autoDelete);
                  }
                  @Bean // 交换机
                  public FanoutExchange fanoutExchange(){
                      return new FanoutExchange(RabbitMqConstants.MQ_FANOUT_EXCHANGE,
                              RabbitMqConstants.durable,
                              RabbitMqConstants.autoDelete);
                  }
                  @Bean
                  public Binding mailBinding(){
                      return BindingBuilder.bind(mailQueue())
                              .to(fanoutExchange());
                  }
                  @Bean
                  public Binding phoneBinding(){
                      return BindingBuilder.bind(phoneQueue())
                              .to(fanoutExchange());
                  }
                  @Bean // A队列
                  public Queue topicAQueue(){
                      return new Queue(RabbitMqConstants.MQ_TOPIC_QUEUE_A,
                              RabbitMqConstants.durable,
                              RabbitMqConstants.exclusive,
                              RabbitMqConstants.autoDelete);
                  }
                  /**
                   * topic模式相关配置
                   */
                  @Bean // B队列
                  public Queue topicBQueue(){
                      return new Queue(RabbitMqConstants.MQ_TOPIC_QUEUE_B,
                              RabbitMqConstants.durable,
                              RabbitMqConstants.exclusive,
                              RabbitMqConstants.autoDelete);
                  }
                  @Bean // topic的交换机
                  public TopicExchange topicMyExchange(){
                      return new TopicExchange(RabbitMqConstants.MQ_TOPIC_EXCHANGE,
                              RabbitMqConstants.durable,
                              RabbitMqConstants.autoDelete);
                  }
                  @Bean
                  public Binding topicAQueueBinding(){
                      return BindingBuilder
                              .bind(topicAQueue())
                              .to(topicMyExchange())
                              .with("topic.xxx"); // 规则 topic.xxx
                  }
                  @Bean
                  public Binding topicBQueueBinding(){
                      return BindingBuilder
                              .bind(topicBQueue())
                              .to(topicMyExchange())
                              .with("topic.*"); // 规则 topic.xxx
                  }
              }

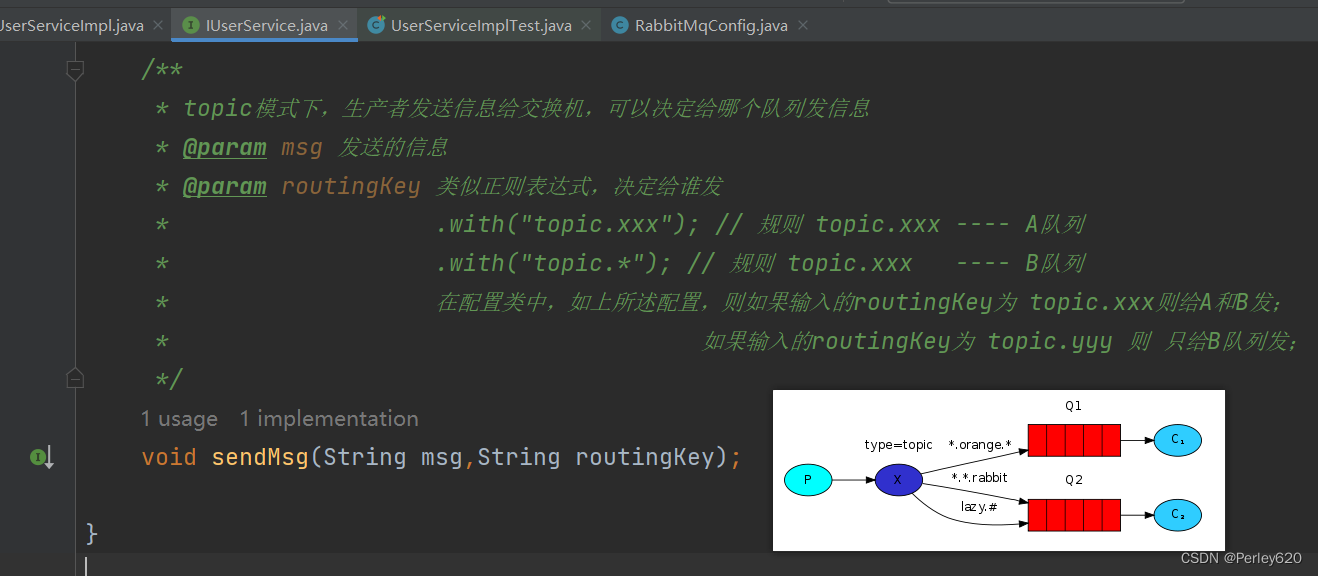

              生产者发送信息



                  /**
                   * topic模式下，生产者发送信息给交换机，可以决定给哪个队列发信息
                   * @param msg 发送的信息
                   * @param routingKey 类似正则表达式，决定给谁发
                   *                   .with("topic.xxx"); // 规则 topic.xxx ---- A队列
                   *                   .with("topic.*"); // 规则 topic.xxx   ---- B队列
                   *                   在配置类中，如上所述配置，则如果输入的routingKey为 topic.xxx则给A和B发；
                   *                                      如果输入的routingKey为 topic.yyy 则 只给B队列发；
                   */
                  void sendMsg(String msg,String routingKey);


              实现

              package com.tianju.auth.service.impl;
              import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
              import com.tianju.auth.entity.UserPrivs;
              import com.tianju.auth.mapper.UserMapper;
              import com.tianju.auth.service.IUserService;
              import com.tianju.auth.util.RabbitMqConstants;
              import lombok.extern.slf4j.Slf4j;
              import org.springframework.amqp.rabbit.core.RabbitTemplate;
              import org.springframework.beans.factory.annotation.Autowired;
              import org.springframework.stereotype.Service;
              import java.util.ArrayList;
              import java.util.List;
              @Service
              @Slf4j
              public class UserServiceImpl implements IUserService {
                  @Autowired
                  private RabbitTemplate rabbitTemplate;
                  @Override
                  public void sendCode(String msg) {
                      rabbitTemplate.convertAndSend(
                              RabbitMqConstants.MQ_FANOUT_EXCHANGE,
                              "routingkey.fanout",
                              msg);
                      log.debug("[生产者向交换机：] 发送一条信息：{}",msg);
                  }
                  @Override
                  public void sendMsg(String msg,String routingKey) {
                      rabbitTemplate.convertAndSend(
                              RabbitMqConstants.MQ_TOPIC_EXCHANGE,
                              routingKey, // "topic.yyy",此时只有B队列有信息
                              msg);
                      log.debug("[生产者向交换机：] 发送一条信息：{}",msg);
                  }
              }


              进行发送

              package com.tianju.auth.service.impl;
              import cn.hutool.core.lang.Snowflake;
              import com.tianju.auth.service.IUserService;
              import org.junit.Test;
              import org.junit.runner.RunWith;
              import org.springframework.beans.factory.annotation.Autowired;
              import org.springframework.boot.test.context.SpringBootTest;
              import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
              @SpringBootTest
              @RunWith(SpringJUnit4ClassRunner.class)
              public class UserServiceImplTest {
                  @Autowired
                  private IUserService userService;
                  @Test
                  public void sendCode() {
                      String code = new Snowflake().nextIdStr().substring(0, 6);
                      System.out.println(code);
                      userService.sendCode(code);
                  }
                  @Test
                  public void sendTopic() {
                      String code = new Snowflake().nextIdStr().substring(0, 6);
                      System.out.println(code);
                      userService.sendMsg(code,"topic.yyy");
                  }
              }

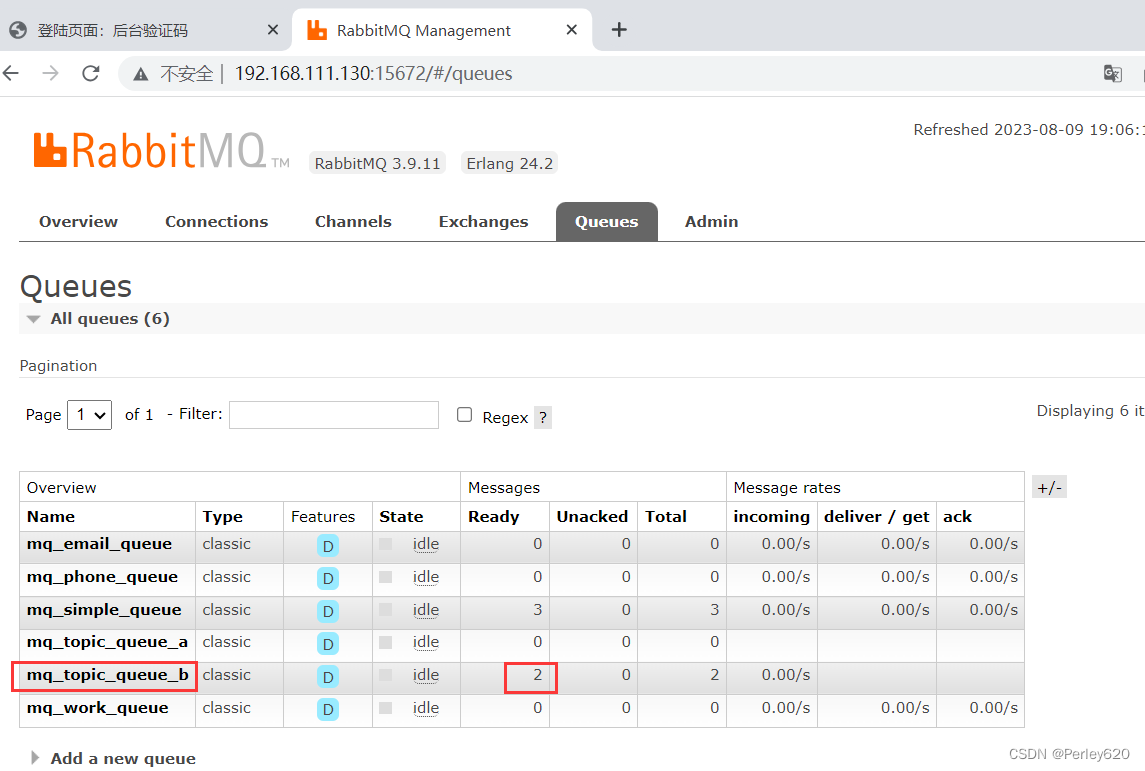

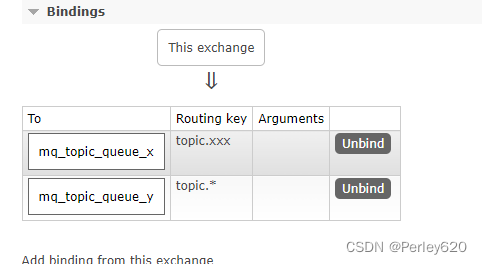

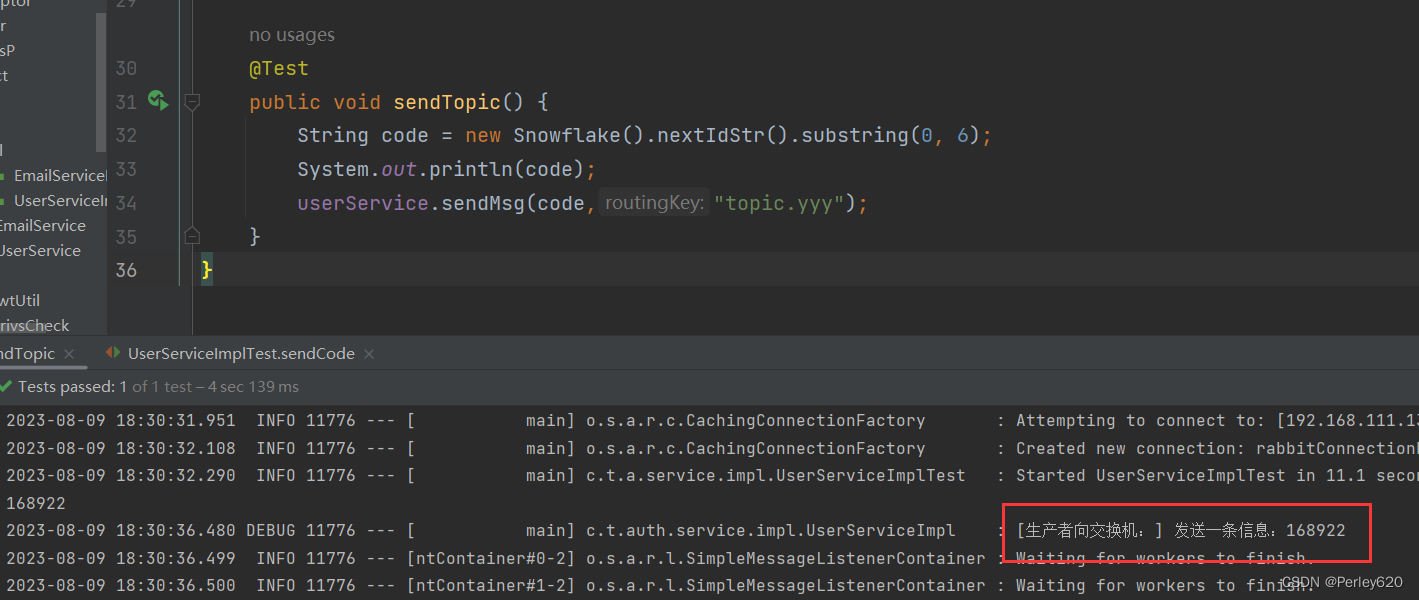

              控制台查看



              rabbitmq回调确认

              配置类

              spring:
                # rabbitmq的配置
                rabbitmq:
                  host: 192.168.111.130
                  port: 5672
                  username: admin
                  password: 123
                  # 确认收到
                  publisher-confirm-type: correlated
                  publisher-returns: true

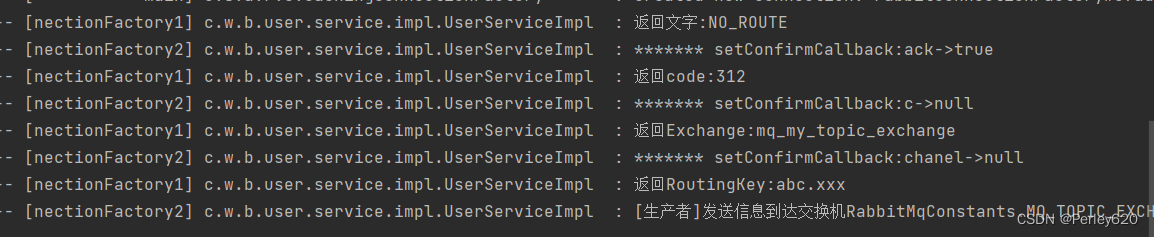

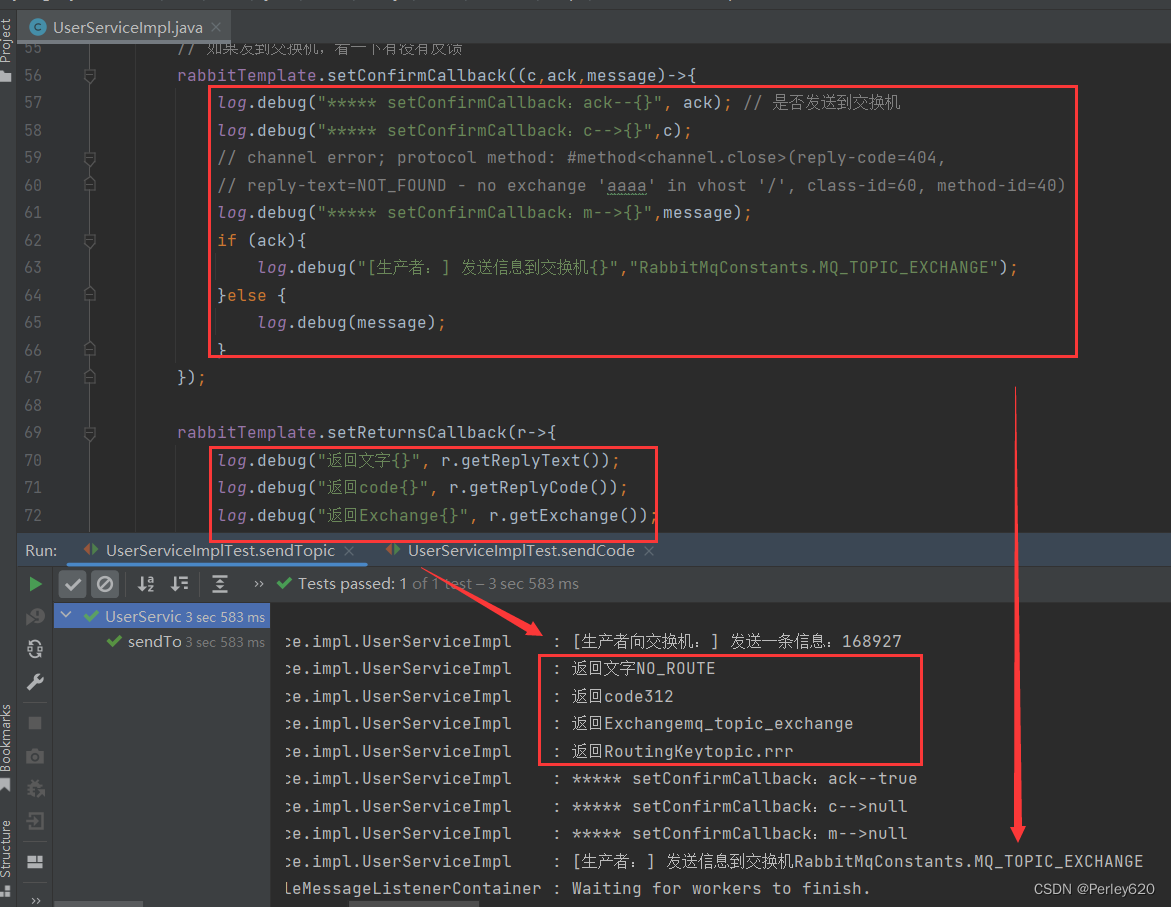

              验证生产者发送是否成功

              使用RabbitTemplate的回调方法。

              先设置

              • setConfirmCallback
              • setReturnsCallback



                  @Autowired
                  private RabbitTemplate rabbitTemplate;
                  @Override
                  public void sendCode(String msg) {
                      rabbitTemplate.convertAndSend(
                              RabbitMqConstants.MQ_FANOUT_EXCHANGE,
                              "routingkey.fanout",
                              msg);
                      log.debug("[生产者向交换机：] 发送一条信息：{}",msg);
                  }
                  @Override
                  public void sendMsg(String msg,String routingKey) {
                      // 如果发到交换机，看一下有没有反馈
                      rabbitTemplate.setConfirmCallback((c,ack,message)->{
                          log.debug("***** setConfirmCallback：ack--{}", ack); // 是否发送到交换机
                          log.debug("***** setConfirmCallback：c-->{}",c);
                          // channel error; protocol method: #method(reply-code=404,
                          // reply-text=NOT_FOUND - no exchange 'aaaa' in vhost '/', class-id=60, method-id=40)
                          log.debug("***** setConfirmCallback：m-->{}",message);
                          if (ack){
                              log.debug("[生产者：] 发送信息到交换机{}","RabbitMqConstants.MQ_TOPIC_EXCHANGE");
                          }else {
                              log.debug(message);
                          }
                      });
                      rabbitTemplate.setReturnsCallback(r->{
                          log.debug("返回文字{}", r.getReplyText());
                          log.debug("返回code{}", r.getReplyCode());
                          log.debug("返回Exchange{}", r.getExchange());
                          log.debug("返回RoutingKey{}", r.getRoutingKey());
                      });
                      rabbitTemplate.convertAndSend(
                              RabbitMqConstants.MQ_TOPIC_EXCHANGE,
              //                "aaaa",// 失败的情况
                              routingKey, // "topic.yyy",此时只有B队列有信息
                              msg);
                      log.debug("[生产者向交换机：] 发送一条信息：{}",msg);
                  }




              rabbitTemplate.setConfirmCallback((c,ack,message)->{
                  log.debug("******* setConfirmCallback:ack->{}",ack);
                  log.debug("******* setConfirmCallback:c->{}",c);
                  log.debug("******* setConfirmCallback:chanel->{}",message);
                  if(ack){
                      log.debug("[生产者]发送信息到达交换机{}","RabbitMqConstants.MQ_TOPIC_EXCHANGE");
                  }else {
                      log.debug(message);
                  }
              });
              rabbitTemplate.setReturnsCallback(r->{
                  log.debug("返回文字:{}",r.getReplyText());
                  log.debug("返回code:{}",r.getReplyCode());
                  log.debug("返回Exchange:{}",r.getExchange());
                  log.debug("返回RoutingKey:{}",r.getRoutingKey());
              });
              rabbitTemplate.convertAndSend(
                      RabbitMqConstants.MQ_TOPIC_EXCHANGE,
                      "abc.xxx",
                      msg
              );


                  @Test
                  public void sendTopic() {
                      String code = new Snowflake().nextIdStr().substring(0, 6);
                      System.out.println(code);
                      userService.sendMsg(code,"topic.rrr");
                  }


              延迟队列（死信）设计

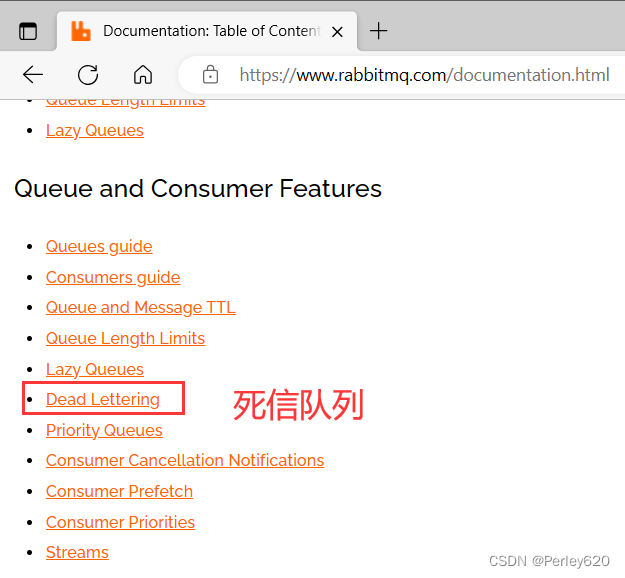

              Documentation: Table of Contents — RabbitMQ





              java代码步骤

              创建正常+死信队列

              package com.tianju.mq.config;
              import com.tianju.mq.constants.RabbitMqConstants;
              import org.springframework.amqp.core.Binding;
              import org.springframework.amqp.core.BindingBuilder;
              import org.springframework.amqp.core.DirectExchange;
              import org.springframework.amqp.core.Queue;
              import org.springframework.context.annotation.Bean;
              import org.springframework.context.annotation.Configuration;
              import java.util.HashMap;
              import java.util.Map;
              @Configuration
              public class RabbitMqConfig {
                  @Bean
                  public DirectExchange normalExchange(){
                      return new DirectExchange(RabbitMqConstants.MQ_NORMAL_EXCHANGE,
                              RabbitMqConstants.durable,
                              RabbitMqConstants.autoDelete);
                  }
                  @Bean
                  public Queue normalQueue(){
                      Map map = new HashMap<>(2);
                      map.put("x-dead-letter-exchange",RabbitMqConstants.MQ_DELAY_EXCHANGE);
                      map.put("x-dead-letter-routing-key",RabbitMqConstants.MQ_DELAY_ROUTING_KEY);
                      return new Queue(
                              RabbitMqConstants.MQ_NORMAL_QUEUE,
                              RabbitMqConstants.durable,
                              RabbitMqConstants.exclusive,
                              RabbitMqConstants.autoDelete,
                              map);
                  }
                  @Bean
                  public Binding normalBinding(){
                      return BindingBuilder.bind(normalQueue())
                              .to(normalExchange())
                              .with(RabbitMqConstants.MQ_NORMAL_ROUTING_KEY);
                  }
                  //------------------死信队列设计--------------------------
                  /**
                   * 死信(延迟)队列
                   * @return
                   */
                  @Bean
                  public Queue delayQueue(){
                      return new Queue(RabbitMqConstants.MQ_DELAY_QUEUE,
                              RabbitMqConstants.durable,
                              RabbitMqConstants.exclusive,
                              RabbitMqConstants.autoDelete);
                  }
                  /**
                   * 死信交换机
                   * @return
                   */
                  @Bean
                  public DirectExchange delayExchange(){
                      return new DirectExchange(RabbitMqConstants.MQ_DELAY_EXCHANGE,
                              RabbitMqConstants.durable,
                              RabbitMqConstants.autoDelete);
                  }
                  /**
                   * 死信交换机队列绑定
                   * @return
                   */
                  @Bean
                  public Binding delayBinding(){
                      return BindingBuilder.bind(delayQueue())
                              .to(delayExchange())
                              .with(RabbitMqConstants.MQ_DELAY_ROUTING_KEY);
                  }
              }


              配置类+常量

              package com.tianju.mq.constants;
              public interface RabbitMqConstants {
                  String MQ_DELAY_QUEUE = "mq_delay_queue"; // 延迟队列，死信队列
                  String MQ_DELAY_EXCHANGE = "mq_delay_exchange"; // 死信交换机
                  String MQ_DELAY_ROUTING_KEY = "mq_delay_routing_key"; // 死信路由
                  // 正常的队列，交换机，路由
                  String MQ_NORMAL_QUEUE = "mq_normal_queue";
                  String MQ_NORMAL_EXCHANGE = "mq_normal_exchange";
                  String MQ_NORMAL_ROUTING_KEY = "mq_normal_routing_key";
                  // 参数
                  boolean durable = true;
                  boolean exclusive = false;
                  boolean autoDelete = false;
              }


              server:
                port: 9099
              spring:
                # 邮箱的配置
                mail:
                  host: smtp.qq.com
                  port: 587
                  username: xxxxx.com
                  password: xxxxx
                # rabbitmq的配置
                rabbitmq:
                  host: 192.168.111.130
                  port: 5672
                  username: admin
                  password: 123
                  # 确认收到
                  publisher-confirm-type: correlated
                  publisher-returns: true
              logging:
                level:
                  com.tianju.mq: debug

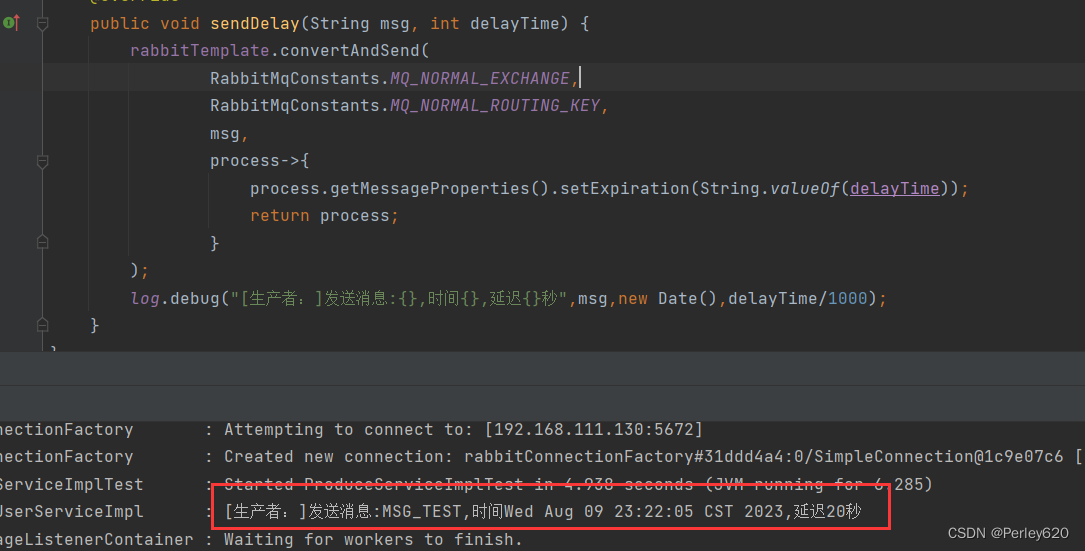

              生产者到正常队列

              package com.tianju.mq.service;
              public interface IUserService {
                  /**
                   * 延迟队列的生产者
                   * @param msg 发送的信息
                   * @param delayTime 延迟的时间，毫秒
                   */
                  void sendDelay(String msg,int delayTime);
              }


              package com.tianju.mq.service.impl;
              import com.tianju.mq.constants.RabbitMqConstants;
              import com.tianju.mq.service.IUserService;
              import lombok.extern.slf4j.Slf4j;
              import org.springframework.amqp.core.MessageProperties;
              import org.springframework.amqp.rabbit.core.RabbitTemplate;
              import org.springframework.beans.factory.annotation.Autowired;
              import org.springframework.stereotype.Service;
              import java.util.Date;
              @Service
              @Slf4j
              public class UserServiceImpl implements IUserService {
                  @Autowired
                  private RabbitTemplate rabbitTemplate;
                  @Override
                  public void sendDelay(String msg, int delayTime) {
                      rabbitTemplate.convertAndSend(
                              RabbitMqConstants.MQ_NORMAL_EXCHANGE,
                              RabbitMqConstants.MQ_NORMAL_ROUTING_KEY,
                              msg,
                              process->{
                                  process.getMessageProperties().setExpiration(String.valueOf(delayTime));
                                  return process;
                              }
                      );
                      log.debug("[生产者：]发送消息:{},时间{},延迟{}秒",msg,new Date(),delayTime/1000);
                  }
              }

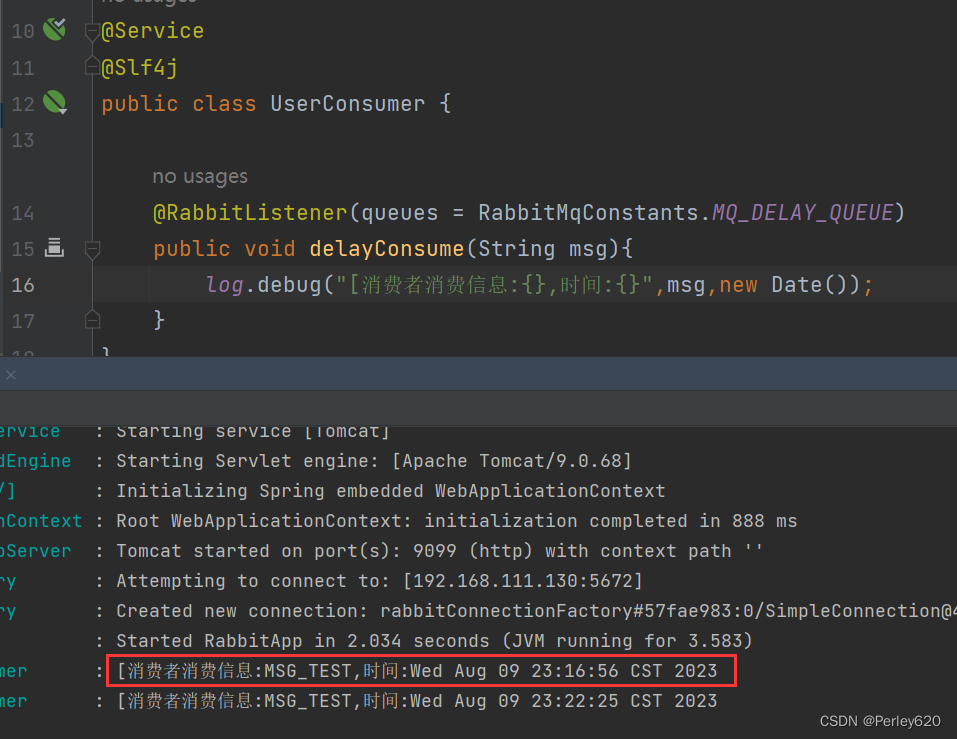

              消费者进行延迟消费

              package com.tianju.mq.consumer;
              import com.tianju.mq.constants.RabbitMqConstants;
              import lombok.extern.slf4j.Slf4j;
              import org.springframework.amqp.rabbit.annotation.RabbitListener;
              import org.springframework.stereotype.Service;
              import java.util.Date;
              @Service
              @Slf4j
              public class UserConsumer {
                  @RabbitListener(queues = RabbitMqConstants.MQ_DELAY_QUEUE)
                  public void delayConsume(String msg){
                      log.debug("[消费者消费信息:{},时间:{}",msg,new Date());
                  }
              }




              延迟队列插件安装

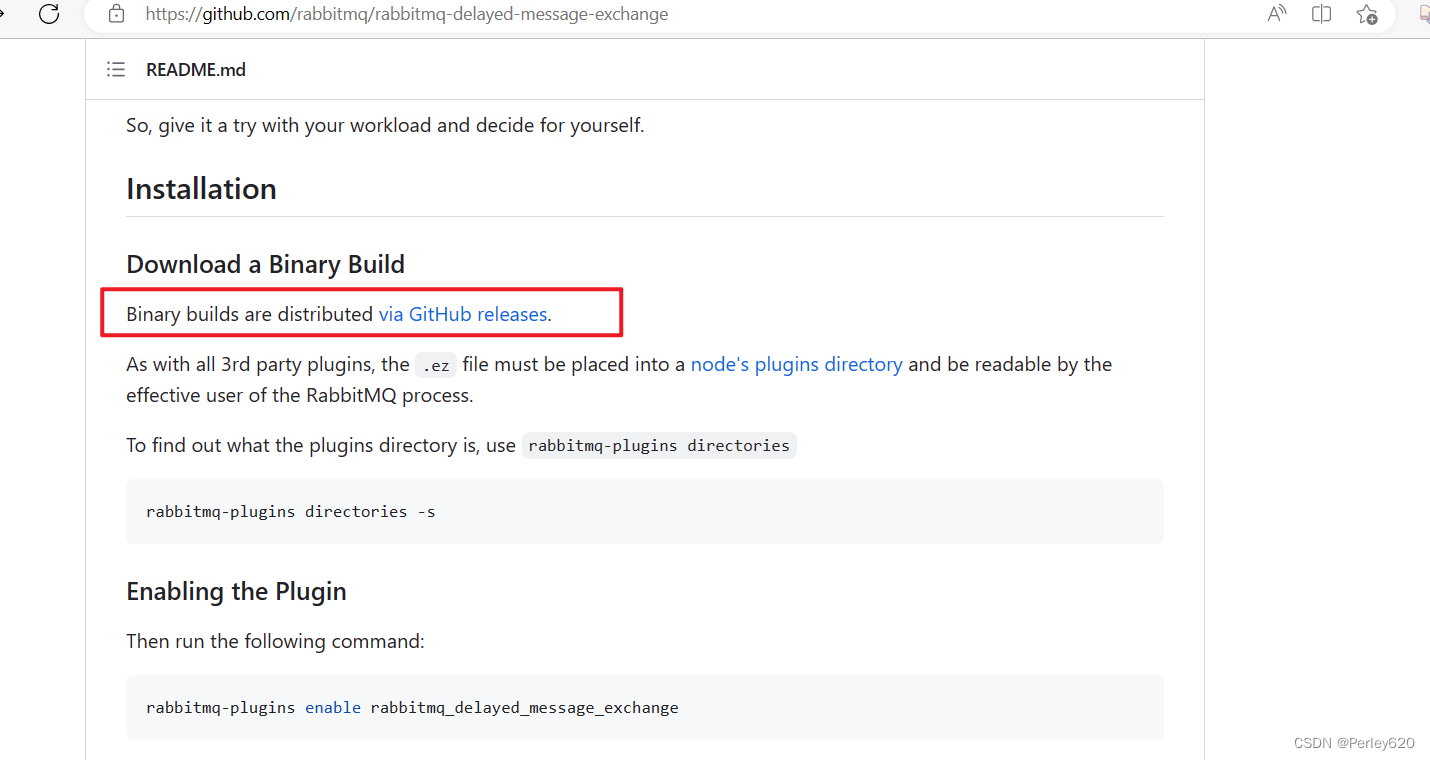

              访问官网

              Community Plugins — RabbitMQ





              进入rabbitmq docker容器

              [root@localhost ~]# docker exec -it rabbitmq bash


              查询插件列表是否存在延迟插件

              root@6d2342d51b11:/plugins# rabbitmq-plugins list
              Listing plugins with pattern ".*" ...
               Configured: E = explicitly enabled; e = implicitly enabled
               | Status: * = running on rabbit@6d2342d51b11
               |/
              [  ] rabbitmq_amqp1_0                  3.9.11
              [  ] rabbitmq_auth_backend_cache       3.9.11
              [  ] rabbitmq_auth_backend_http        3.9.11
              [  ] rabbitmq_auth_backend_ldap        3.9.11
              [  ] rabbitmq_auth_backend_oauth2      3.9.11
              [  ] rabbitmq_auth_mechanism_ssl       3.9.11
              [  ] rabbitmq_consistent_hash_exchange 3.9.11
              [  ] rabbitmq_event_exchange           3.9.11
              [  ] rabbitmq_federation               3.9.11
              [  ] rabbitmq_federation_management    3.9.11
              [  ] rabbitmq_jms_topic_exchange       3.9.11
              [E*] rabbitmq_management               3.9.11
              [e*] rabbitmq_management_agent         3.9.11
              [  ] rabbitmq_mqtt                     3.9.11
              [  ] rabbitmq_peer_discovery_aws       3.9.11
              [  ] rabbitmq_peer_discovery_common    3.9.11
              [  ] rabbitmq_peer_discovery_consul    3.9.11
              [  ] rabbitmq_peer_discovery_etcd      3.9.11
              [  ] rabbitmq_peer_discovery_k8s       3.9.11
              [E*] rabbitmq_prometheus               3.9.11
              [  ] rabbitmq_random_exchange          3.9.11
              [  ] rabbitmq_recent_history_exchange  3.9.11
              [  ] rabbitmq_sharding                 3.9.11
              [  ] rabbitmq_shovel                   3.9.11
              [  ] rabbitmq_shovel_management        3.9.11
              [  ] rabbitmq_stomp                    3.9.11
              [  ] rabbitmq_stream                   3.9.11
              [  ] rabbitmq_stream_management        3.9.11
              [  ] rabbitmq_top                      3.9.11
              [  ] rabbitmq_tracing                  3.9.11
              [  ] rabbitmq_trust_store              3.9.11
              [e*] rabbitmq_web_dispatch             3.9.11
              [  ] rabbitmq_web_mqtt                 3.9.11
              [  ] rabbitmq_web_mqtt_examples        3.9.11
              [  ] rabbitmq_web_stomp                3.9.11
              [  ] rabbitmq_web_stomp_examples       3.9.11

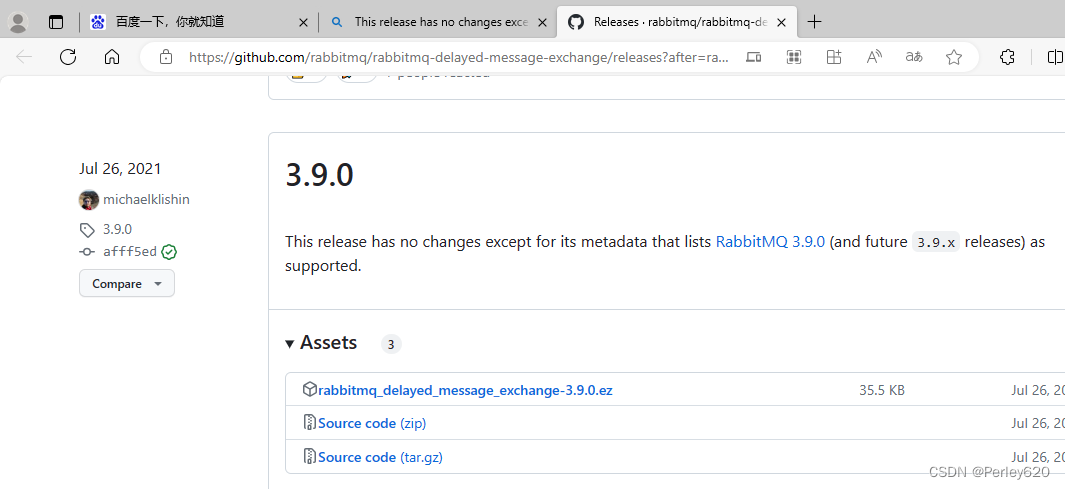

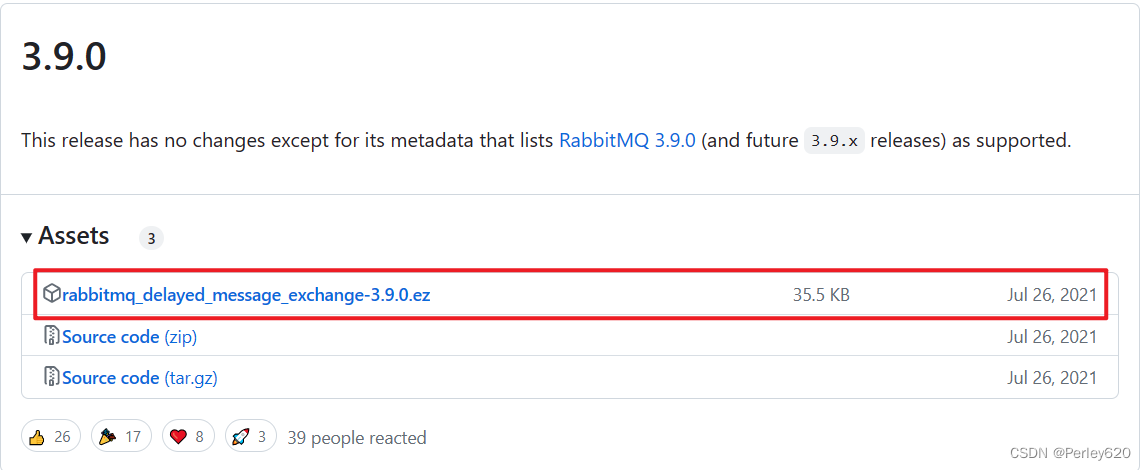

              下载支持3.9.x的插件

              https://github.com/rabbitmq/rabbitmq-delayed-message-exchange/releases?after=rabbitmq_v3_6_12





              退出容器：

              root@6d2342d51b11:/plugins# exit
              exit

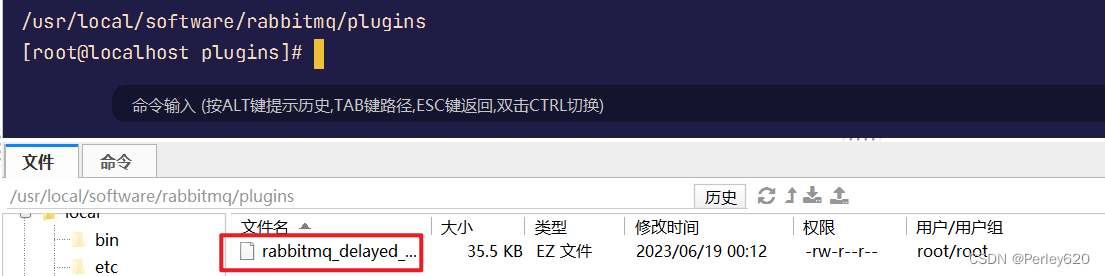

              上传到linux服务器

              在/usr/local/software/下创建文件夹rabbitmq/plugins

              [root@localhost software]# mkdir -p rabbitmq/plugins




              拷贝插件到容器中

              [root@localhost plugins]# docker cp ./rabbitmq_delayed_message_exchange-3.9.0.ez rabbitmq:/plugins


              进入容器安装插件

              [root@localhost plugins]# docker  exec -it rabbitmq bash
              root@6d2342d51b11:/# rabbitmq-plugins enable rabbitmq_delayed_message_exchange

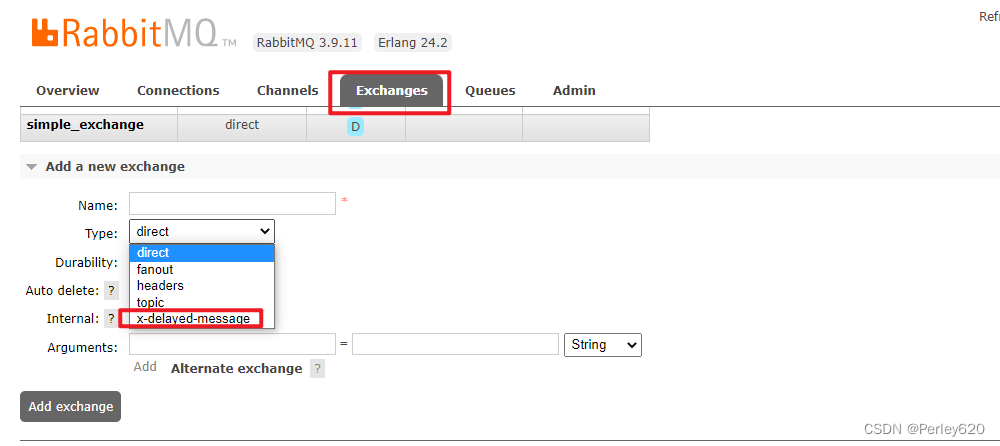

              打开管理页面

              进入Exchange页面，下拉Type看是否已经安装成功。



              ---

              总结

              1.rabbitmq队列方式的梳理，点对点，一对多；

              2.发布订阅模式，交换机到消费者，以邮箱和手机验证码为例；

              3.topic模式，根据规则决定发送给哪个队列；

              4.rabbitmq回调确认，setConfirmCallback和setReturnsCallback；

              5.死信队列，延迟队列，创建方法，正常—死信，设置延迟时间；
