物联网浏览器(IoTBrowser)-Modbus协议集成和测试

Modbus协议在应用中一般用来与PLC或者其他硬件设备通讯，Modbus集成到IoTBrowser使用串口插件模式开发，不同的是采用命令函数，具体可以参考前面几篇文章。目前示例实现了Modbus-Rtu和Modbus-Tcp两种，通过js可以与Modbus进行通讯控制。

一、开发插件

1. 添加引用

• 添加NModbus4，在NuGet搜索NModbus4

• 添加Core，路径：\IoTBrowser\src\app_x64\Core.dll

• 添加Infrastructure，路径：\IoTBrowser\src\app_x64\Infrastructure.dll

• 添加Newtonsoft，路径：\IoTBrowser\src\app_x64\Newtonsoft.Json.dll

  1. 开发ModbusRtu和ModbusTcp插件

  • ModbusRtu

    public class ModbusRtuCom : ComBase
        {
            public override string Type => "modbusRtuCom";
            public override string Name => "ModbusRtuCom";
            private object _locker = new object();
            public override bool Init(int port, int baudRate = 9600, string extendData = null)
            {
                this.Port = port;
                var portName = "COM" + port;
                base.PortName = portName;
                ModbusRtuService.Init(portName, baudRate);
                Console.WriteLine("初始化ModbusRtuCom驱动程序成功！");
                return true;
            }
            public override event PushData OnPushData;
            public override bool Open()
            {
                var b = false;
                try
                {
                    ModbusRtuService.Open();
                    b = true;
                    IsOpen = true;
                }
                catch (Exception ex)
                {
                    string msg = string.Format("ModbusRtuCom串口打开失败：{0} ", ex.Message);
                    Console.WriteLine(msg);
                }
                return b;
            }
            public override bool Close()
            {
                ModbusRtuService.Close();
                IsOpen = false;
                OnPushData = null;
                return true;
            }
            public override string Command(string name, string data)
            {
                var outData = string.Empty;
                var dataObj = Newtonsoft.Json.JsonConvert.DeserializeObject(data);
                switch (name)
                {
                    case "ReadCoils":
                        //01
                        var readData = ModbusRtuService.ReadCoils(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), ushort.Parse(dataObj.numberOfPoints.ToString()));
                        outData = ModbusHelper.ToString(readData);
                        break;
                    case "ReadInputs":
                        //02
                        readData = ModbusRtuService.ReadInputs(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), ushort.Parse(dataObj.numberOfPoints.ToString()));
                        outData = ModbusHelper.ToString(readData);
                        break;
                    case "ReadHoldingRegisters":
                        //03
                        readData = ModbusRtuService.ReadHoldingRegisters(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), ushort.Parse(dataObj.numberOfPoints.ToString()));
                        outData = ModbusHelper.ToString(readData);
                        break;
                    case "ReadInputRegisters":
                        //04
                        readData = ModbusRtuService.ReadInputRegisters(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), ushort.Parse(dataObj.numberOfPoints.ToString()));
                        outData = ModbusHelper.ToString(readData);
                        break;
                    case "WriteSingleCoil":
                        //05
                        ModbusRtuService.WriteSingleCoil(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), ModbusHelper.BoolParse(dataObj.value.ToString()));
                        break;
                    case "WriteSingleRegister":
                        //06
                        ModbusRtuService.WriteSingleRegister(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), ushort.Parse(dataObj.value.ToString()));
                        break;
                    case "WriteMultipleCoils":
                        //0F 写一组线圈
                        var values = dataObj.value.ToString().Split(' ');
                        var datas = new bool[values.Length];
                        for (var i = 0; i < values.Length; i++)
                        {
                            datas[i] = ModbusHelper.BoolParse(values[i]);
                        }
                        ModbusRtuService.WriteMultipleCoils(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), datas);
                        break;
                    case "WriteMultipleRegisters":
                        // 10 写一组保持寄存器
                        values = dataObj.value.ToString().Split(' ');
                        var udatas = new ushort[values.Length];
                        for (var i = 0; i < values.Length; i++)
                        {
                            udatas[i] = ushort.Parse(values[i]);
                        }
                        ModbusRtuService.WriteMultipleRegisters(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), udatas);
                        break;
                }
                return outData;
            }
        }

    • ModbusTcp

      public class ModbusTcpCom : ComBase
          {
              public override string Type => "modbusTcpCom";
              public override string Name => "ModbusTcpCom";
              private object _locker = new object();
              public override bool Init(int port, int baudRate = 9600, string extendData = null)
              {
                  this.Port = port;
                  ModbusTcpService.Init(extendData, port);
                  Console.WriteLine("初始化ModbusTcpCom驱动程序成功！");
                  return true;
              }
              public override event PushData OnPushData;
              public override bool Open()
              {
                  var b = false;
                  try
                  {
                      ModbusTcpService.Open();
                      b = true;
                      IsOpen = true;
                  }
                  catch (Exception ex)
                  {
                      string msg = string.Format("ModbusTcpCom串口打开失败：{0} ", ex.Message);
                      Console.WriteLine(msg);
                  }
                  return b;
              }
              public override bool Close()
              {
                  ModbusTcpService.Close();
                  IsOpen = false;
                  OnPushData = null;
                  return true;
              }
              public override string Command(string name, string data)
              {
                  var outData = string.Empty;
                  var dataObj = Newtonsoft.Json.JsonConvert.DeserializeObject(data);
                  switch (name)
                  {
                      case "ReadCoils":
                          //01
                          var readData = ModbusTcpService.ReadCoils(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), ushort.Parse(dataObj.numberOfPoints.ToString()));
                          outData = ModbusHelper.ToString(readData);
                          break;
                      case "ReadInputs":
                          //02
                          readData = ModbusTcpService.ReadInputs(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), ushort.Parse(dataObj.numberOfPoints.ToString()));
                          outData = ModbusHelper.ToString(readData);
                          break;
                      case "ReadHoldingRegisters":
                          //03
                          readData = ModbusTcpService.ReadHoldingRegisters(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), ushort.Parse(dataObj.numberOfPoints.ToString()));
                          outData = ModbusHelper.ToString(readData);
                          break;
                      case "ReadInputRegisters":
                          //04
                          readData=ModbusTcpService.ReadInputRegisters(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), ushort.Parse(dataObj.numberOfPoints.ToString()));
                          outData = ModbusHelper.ToString(readData);
                          break;
                      case "WriteSingleCoil":
                          //05
                          ModbusTcpService.WriteSingleCoil(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), ModbusHelper.BoolParse(dataObj.value.ToString()));
                          break;
                      case "WriteSingleRegister":
                          //06
                          ModbusTcpService.WriteSingleRegister(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), ushort.Parse(dataObj.value.ToString()));
                          break;
                      case "WriteMultipleCoils":
                          //0F 写一组线圈
                          var values = dataObj.value.ToString().Split(' ');
                          var datas =new bool[values.Length];
                          for(var i=0;i< values.Length;i++)
                          {
                              datas[i] = ModbusHelper.BoolParse(values[i]);
                          }
                          ModbusTcpService.WriteMultipleCoils(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), datas);
                          break;
                      case "WriteMultipleRegisters":
                          // 10 写一组保持寄存器
                          values = dataObj.value.ToString().Split(' ');
                          var udatas = new ushort[values.Length];
                          for (var i = 0; i < values.Length; i++)
                          {
                              udatas[i] = ushort.Parse(values[i]);
                          }
                          ModbusTcpService.WriteMultipleRegisters(byte.Parse(dataObj.slaveAddress.ToString()), ushort.Parse(dataObj.startAddress.ToString()), udatas);
                          break;

                  }
                  return outData;
              }
          }

      3.功能

      1. 读单个线圈

         读取输入线圈/离散量线圈

         读取保持寄存器

         读取输入寄存器

         写单个线圈

         写单个输入线圈/离散量线圈

         写一组线圈

         写一组保持寄存器

      源代码位置：\Plugins\DDS.IoT.Modbus

      二、本机测试

      1.测试前准备

      需要安装虚拟串口和modbusslave，可以在源代码中下载：

      物联网浏览器: IoTBrowser用于开发人机界面(HMI)或数据采集与监督控制系统(SCADA) 的工具，使用HTML或Vue前端技术开发物联网终端用户界面，支持串口、RFID、电子秤等硬件协议，支持js控制关机、全屏等工控操作。 - Gitee.com

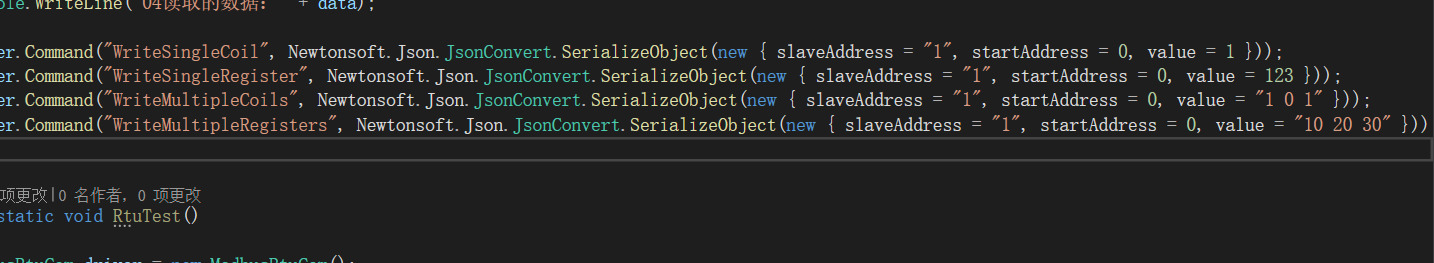

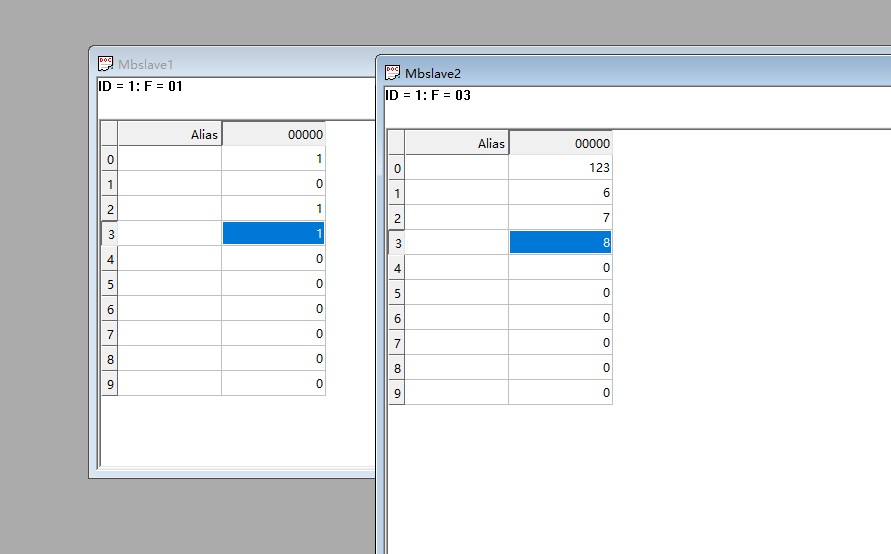

      2.串口测试

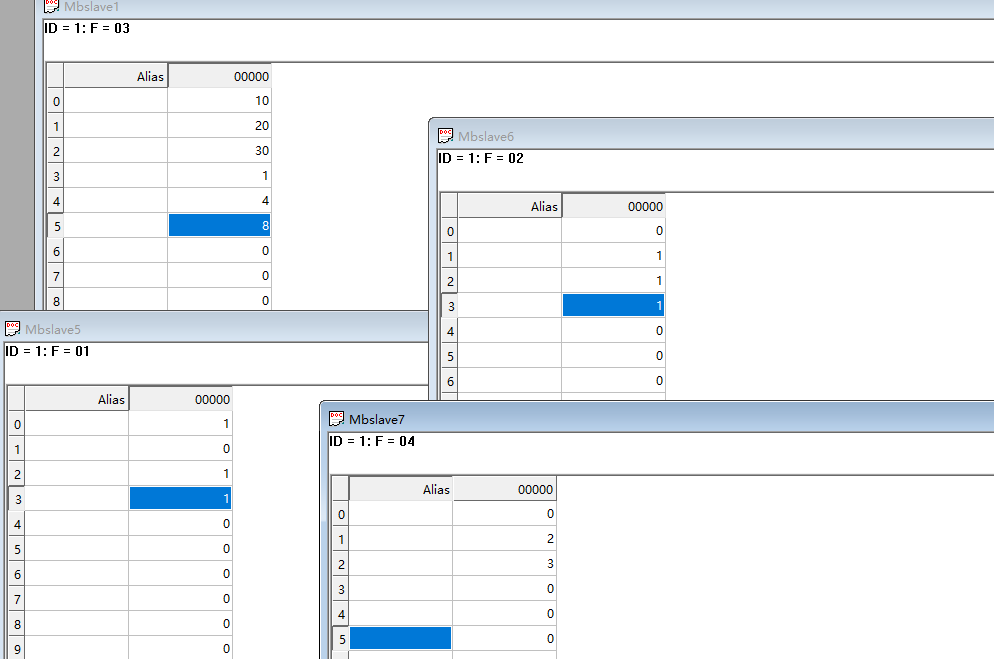

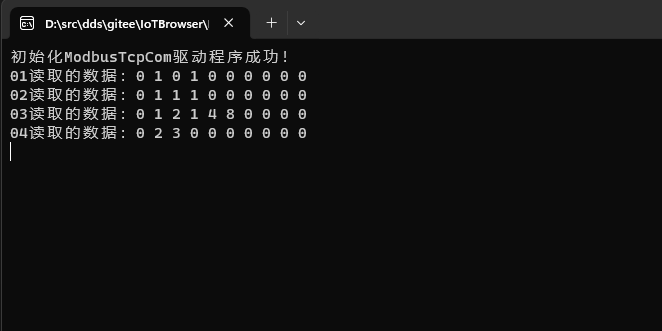

      3.TCP测试





      三、部署到IoTBrowser

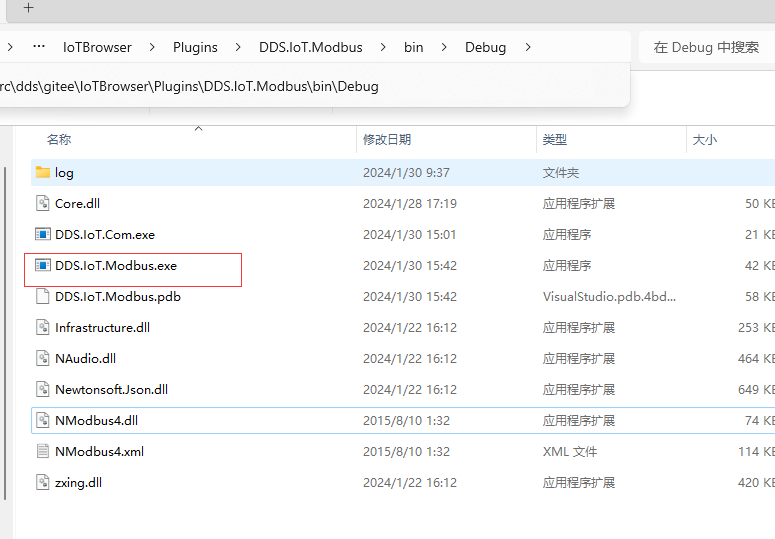

      1.编译



      （建议生产环境使用Release模式）

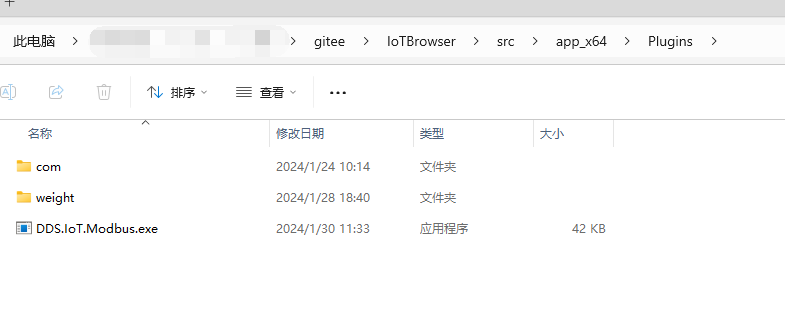

      2.拷贝到Plugins文件夹



      也可以放到com文件夹。

      注意：需要拷贝NModbus4.dll到\IoTBrowser\src\app_x64目录下

      四、IoTBrowser集成测试

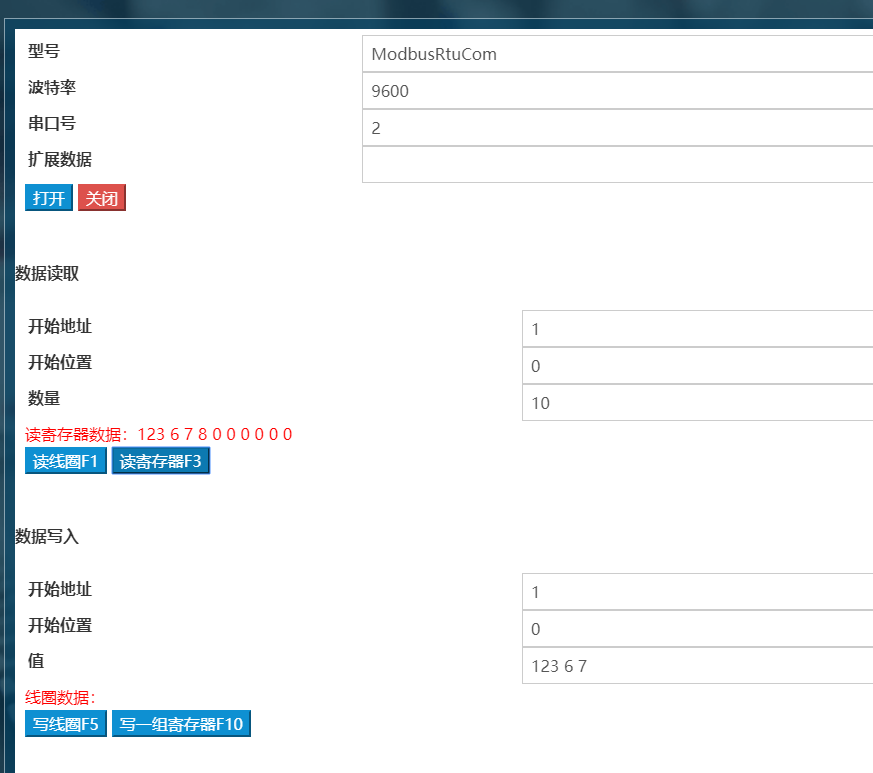

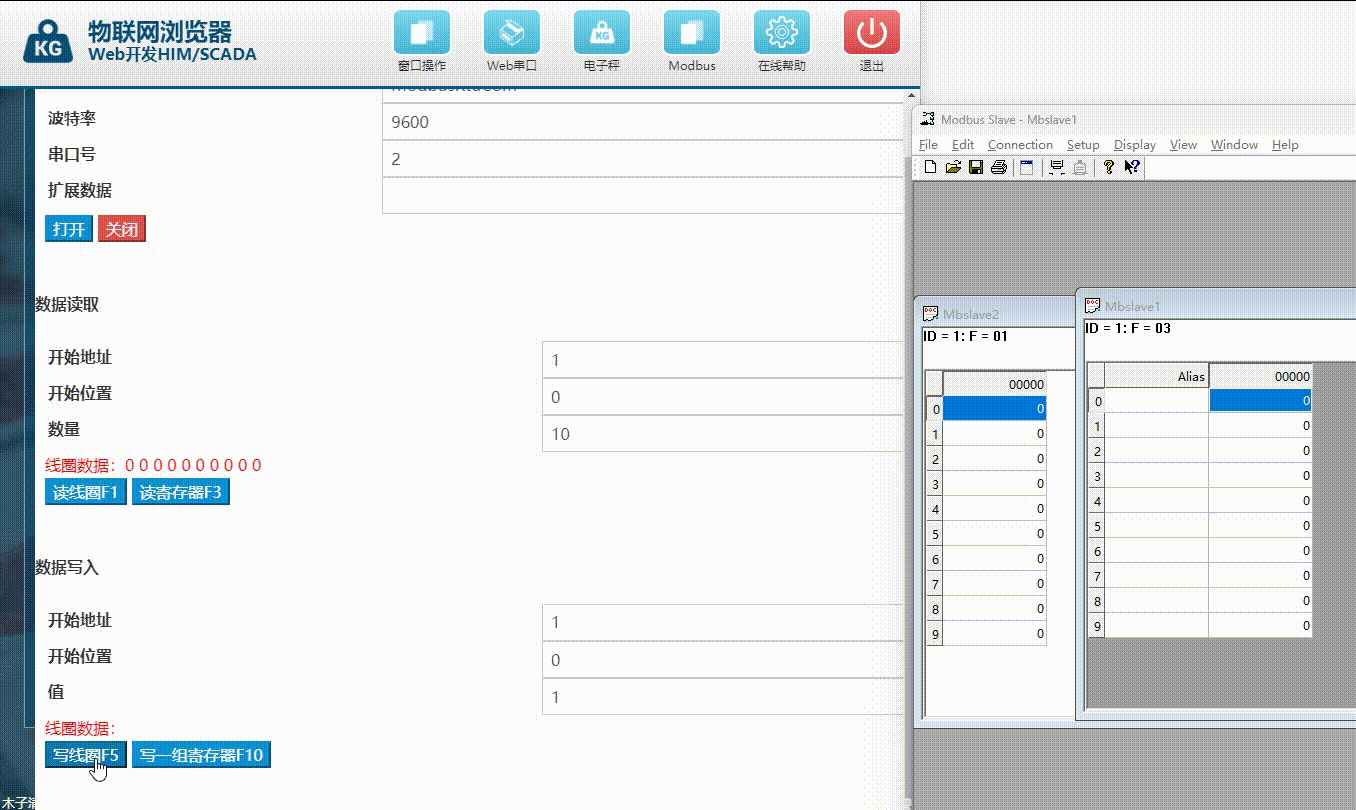

      1.串口测试



      写入多个数据写入以空格分割，写入线圈数据支持0/1或false/true。

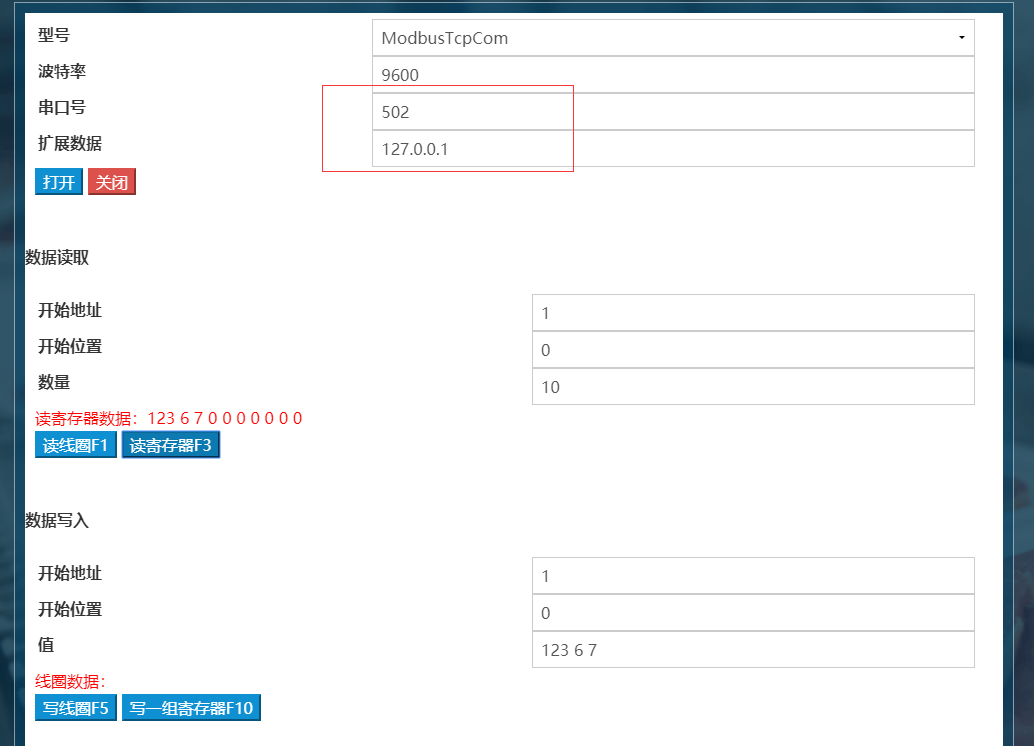

      2.TCP测试



      TCP注意ip地址通过扩展数据传入，端口号就是串口号。
