详解WebRTC rtc::Thread实现

rtc::Thread介绍

rtc::Thread类不仅仅实现了线程这个执行器（比如posix底层调用pthread相关接口创建线程，管理线程等），还包括消息队列（message_queue)的实现，rtc::Thread启动后就作为一个永不停止的event loop，没有任务待执行就阻塞等待，添加任务后就唤醒event loop，去执行任务，周而复始，直到调用stop退出event loop，退出线程（线程join）。

在WebRTC内部，可以将消息队列等同于event loop，消息队列为空，就进行阻塞等待。

class RTC_LOCKABLE Thread : public MessageQueue {

Thread关键接口

public:
 // Starts the execution of the thread.
  bool Start(Runnable* runnable = nullptr);
  // Tells the thread to stop and waits until it is joined.
  // Never call Stop on the current thread.  Instead use the inherited Quit
  // function which will exit the base MessageQueue without terminating the
  // underlying OS thread.
  virtual void Stop();

  virtual void Send(const Location& posted_from,
                    MessageHandler* phandler,
                    uint32_t id = 0,
                    MessageData* pdata = nullptr);
  // Convenience method to invoke a functor on another thread.  Caller must
  // provide the |ReturnT| template argument, which cannot (easily) be deduced.
  // Uses Send() internally, which blocks the current thread until execution
  // is complete.
  // Ex: bool result = thread.Invoke(RTC_FROM_HERE,
  // &MyFunctionReturningBool);
  // NOTE: This function can only be called when synchronous calls are allowed.
  // See ScopedDisallowBlockingCalls for details.
  template
  ReturnT Invoke(const Location& posted_from, FunctorT&& functor) {
    FunctorMessageHandler handler(
        std::forward(functor));
    InvokeInternal(posted_from, &handler);
    return handler.MoveResult();
  }
    // ProcessMessages will process I/O and dispatch messages until:
  //  1) cms milliseconds have elapsed (returns true)
  //  2) Stop() is called (returns false)
  bool ProcessMessages(int cms);

 protected:
  // Blocks the calling thread until this thread has terminated.
  void Join();

MessageQueue关键接口

public:
virtual void Quit();
// Get() will process I/O until:
//  1) A message is available (returns true)
//  2) cmsWait seconds have elapsed (returns false)
//  3) Stop() is called (returns false)
virtual bool Get(Message* pmsg,
                 int cmsWait = kForever,
                 bool process_io = true);
virtual void Post(const Location& posted_from,
                  MessageHandler* phandler,
                  uint32_t id = 0,
                  MessageData* pdata = nullptr,
                  bool time_sensitive = false);
virtual void PostDelayed(const Location& posted_from,
                         int cmsDelay,
                         MessageHandler* phandler,
                         uint32_t id = 0,
                         MessageData* pdata = nullptr);
virtual void PostAt(const Location& posted_from,
                    int64_t tstamp,
                    MessageHandler* phandler,
                    uint32_t id = 0,
                    MessageData* pdata = nullptr);
virtual void Dispatch(Message* pmsg);
virtual void ReceiveSends();
protected:
void WakeUpSocketServer();
MessageList msgq_ RTC_GUARDED_BY(crit_);
PriorityQueue dmsgq_ RTC_GUARDED_BY(crit_);

线程启动Start

调用Start接口启动底层线程，同时进入一个永不停止的event loop（除非调用Stop接口）

流程如下：

Start->pthread_create->PreRun->Run

void Thread::Run() {
  ProcessMessages(kForever);
}

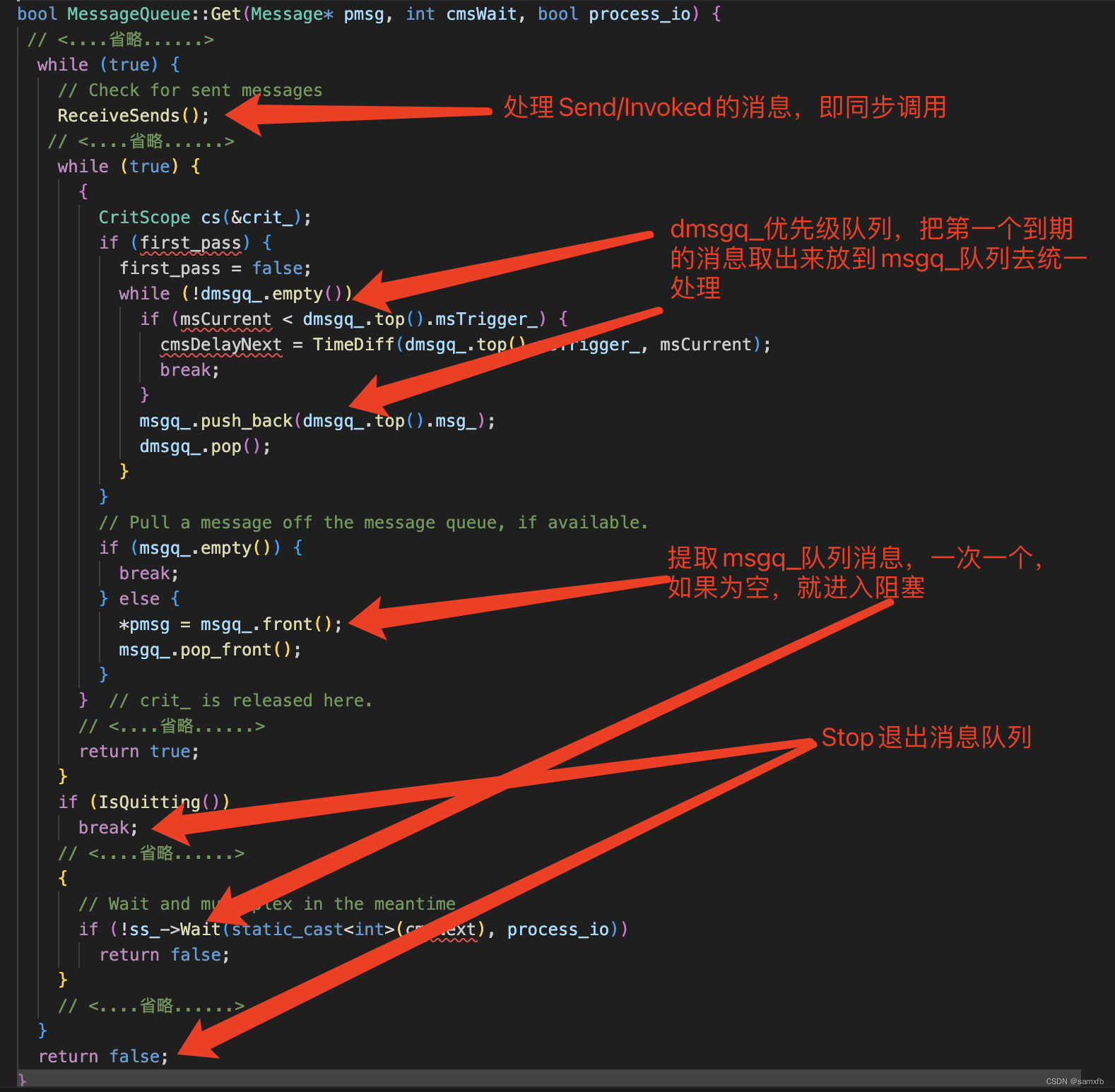

最终通过Get接口获取消息去执行（Dispatch），Get获取不到消息就是进入阻塞状态（wait），等待有消息后被唤醒。

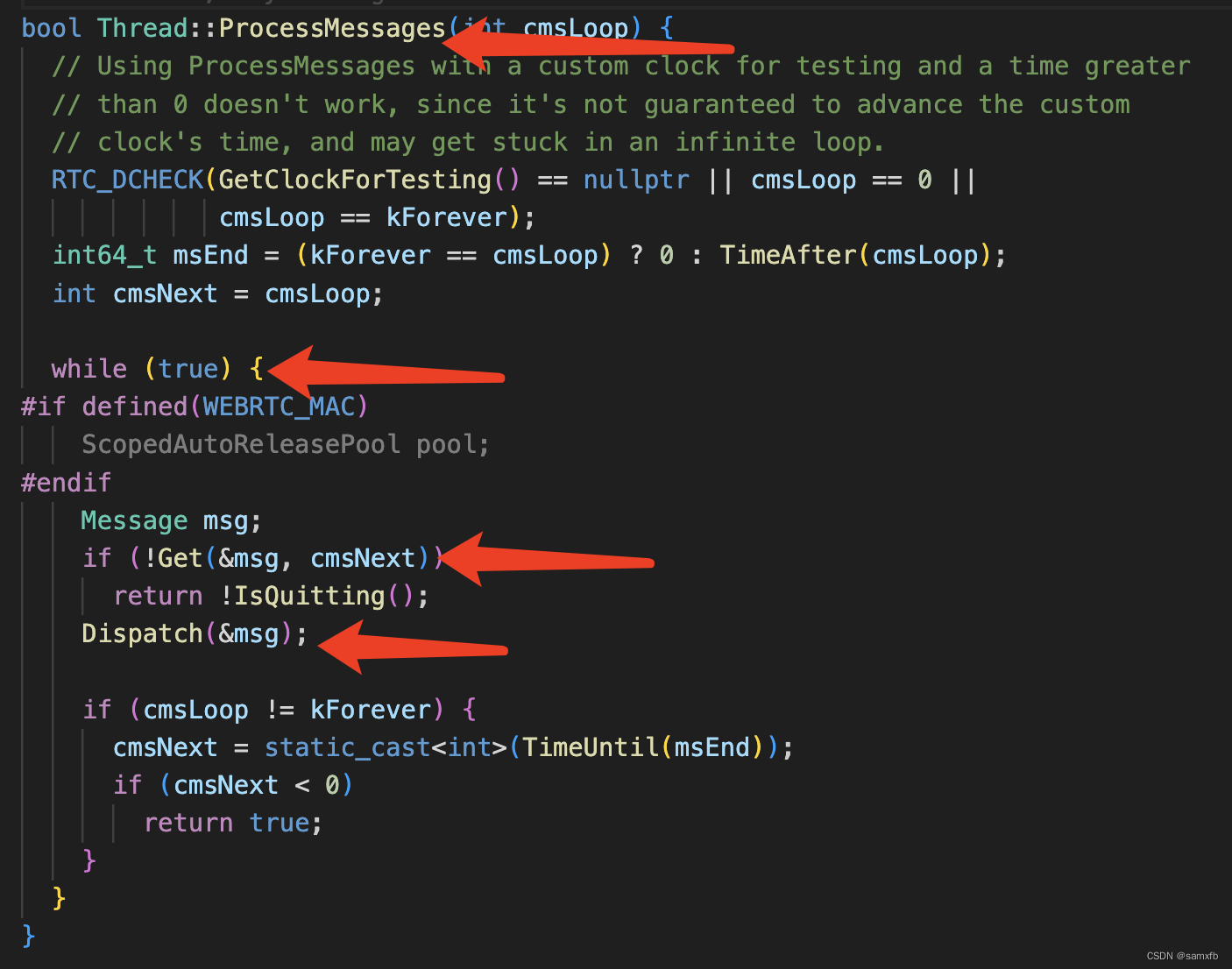

线程消息队列处理消息的流程ProcessMessage

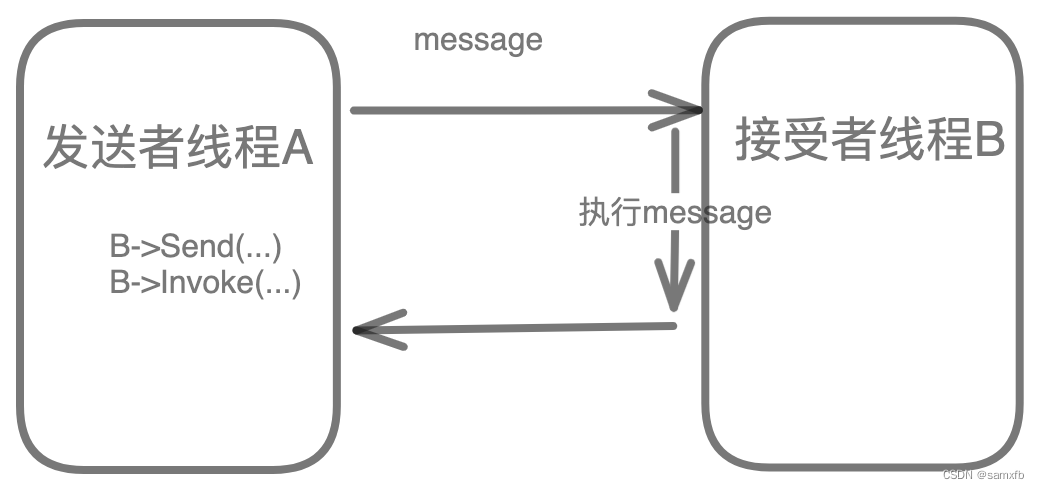

• 1、处理从其他线程发送的要在本线程去执行的消息，即同步调用

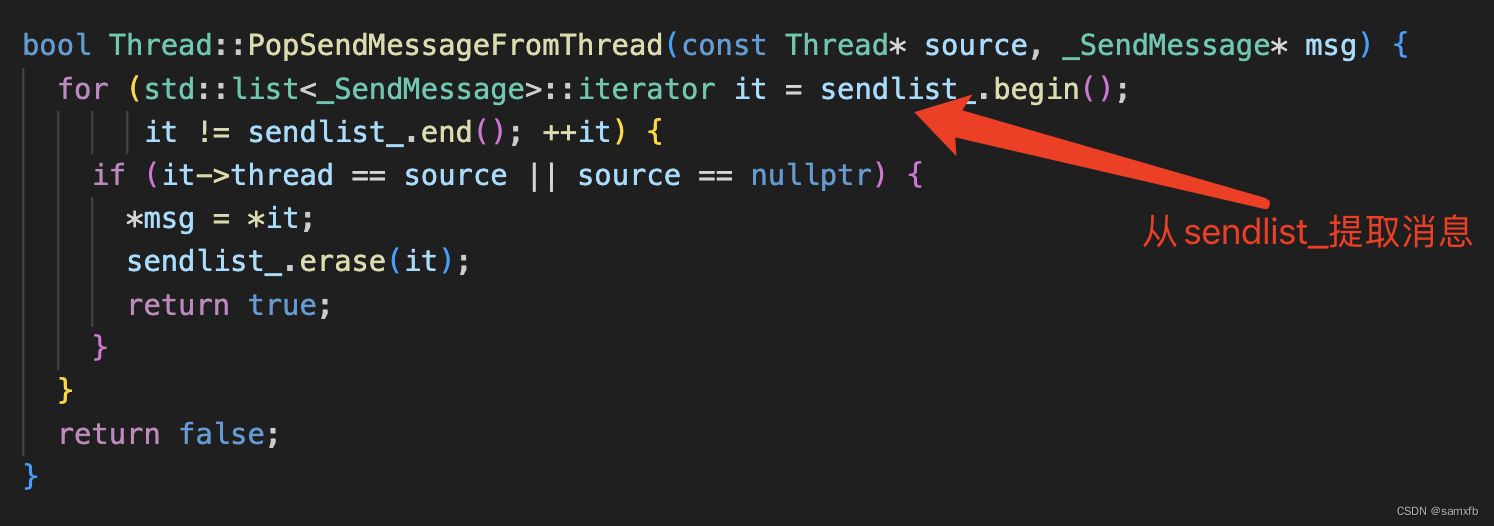

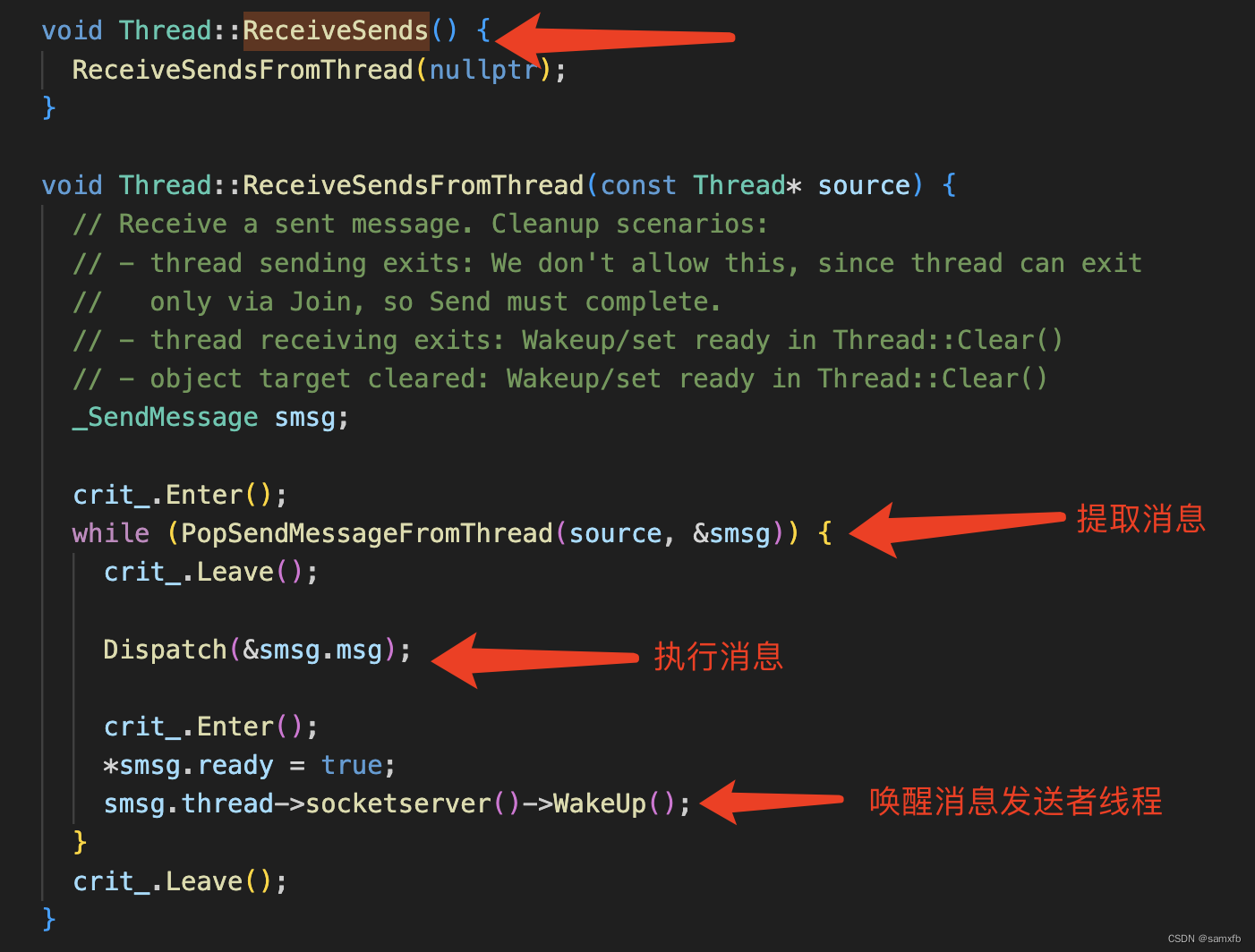

  接收者线程处理流程：

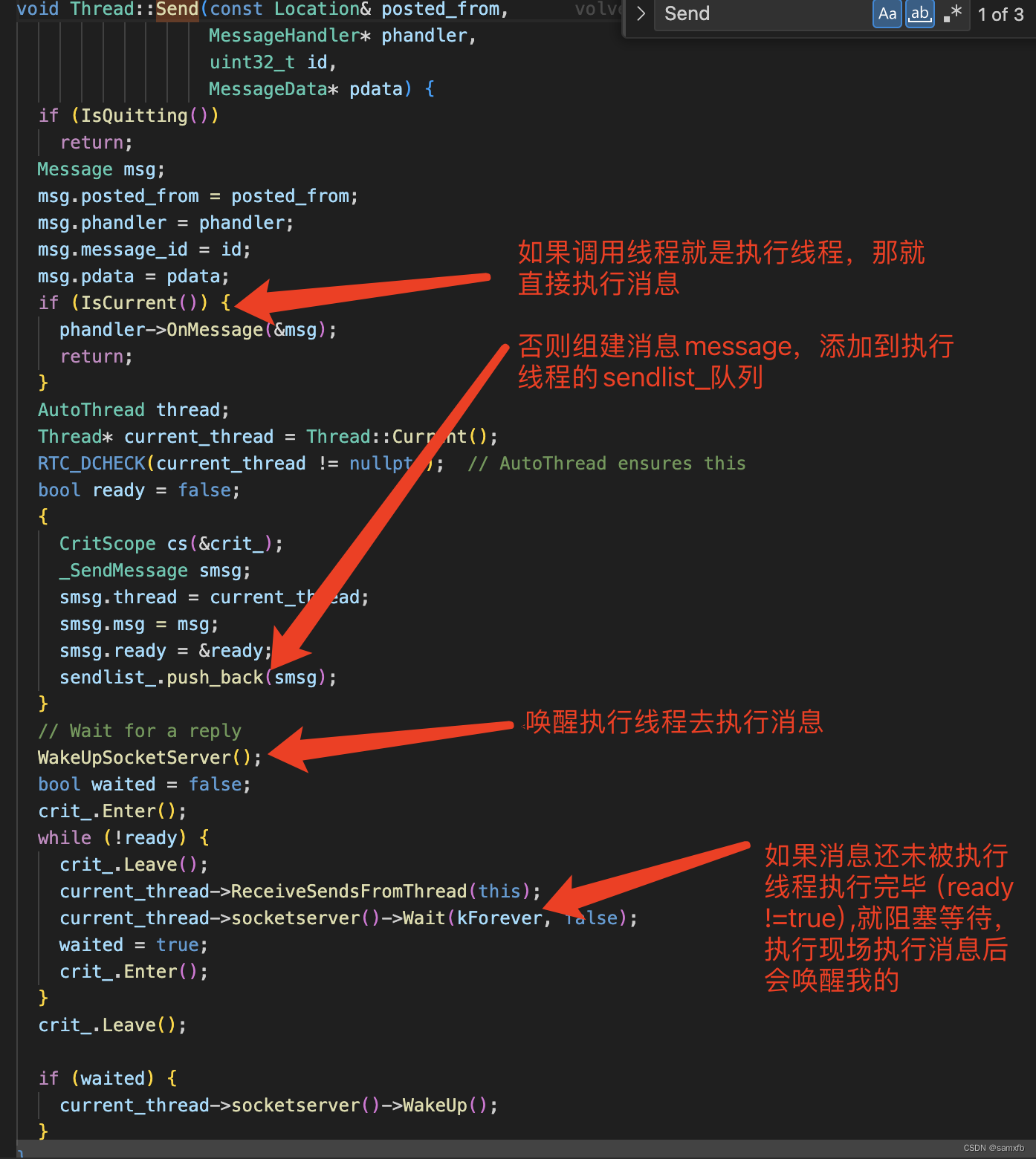

  发送者线程流程：



  • 2、处理延迟消息（存储在优先级队列）

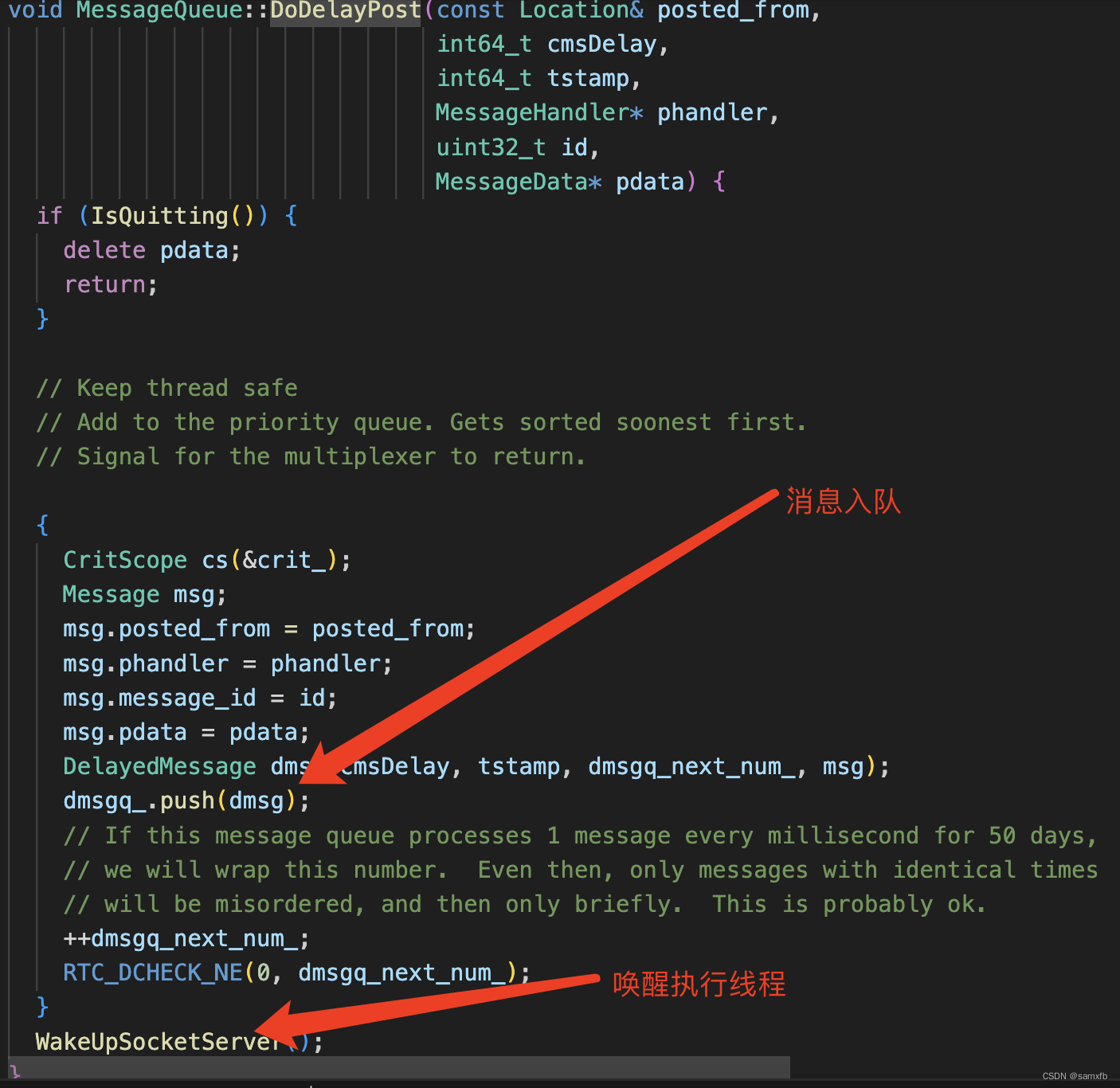

    延迟消息是通过PostDelayed和PostAt接口调用然后push到优先级队列中（dmsgq_，小根堆）



  • 3、异步消息（存储在普通队列里）

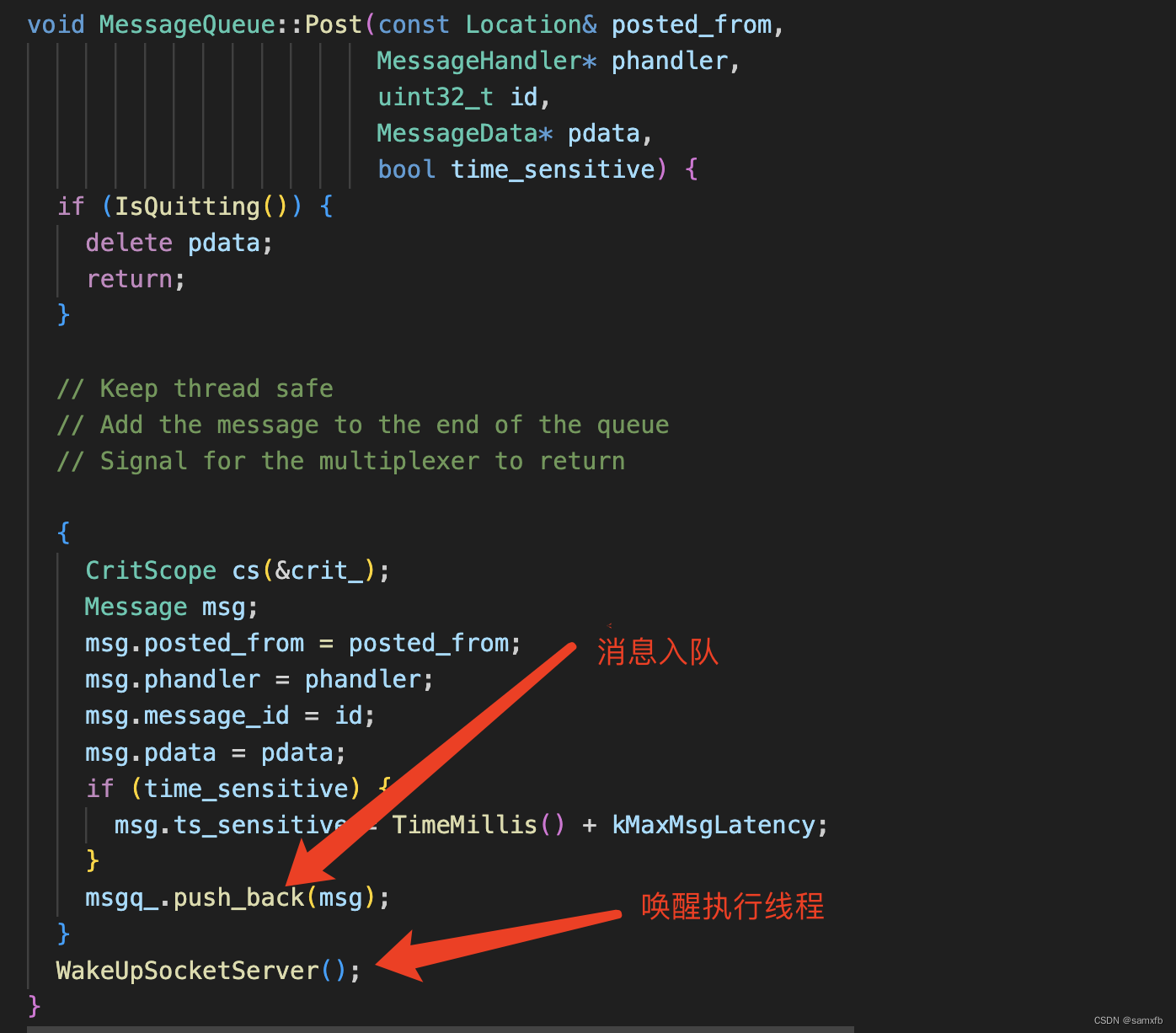

    延迟消息是通过Pos接口调用然后push到普通队列中（msgq_)



    任务提交方式（Invoke/Post）

    webrtc内部消息其实是对待执行任务的封装，消息和任务可以认为是一个意思

    消息要继承MessageHandler，实现OnMessage

    class MessageHandler {
     public:
      virtual ~MessageHandler();
      virtual void OnMessage(Message* msg) = 0;
     protected:
      MessageHandler() {}
     private:
      RTC_DISALLOW_COPY_AND_ASSIGN(MessageHandler);
    };

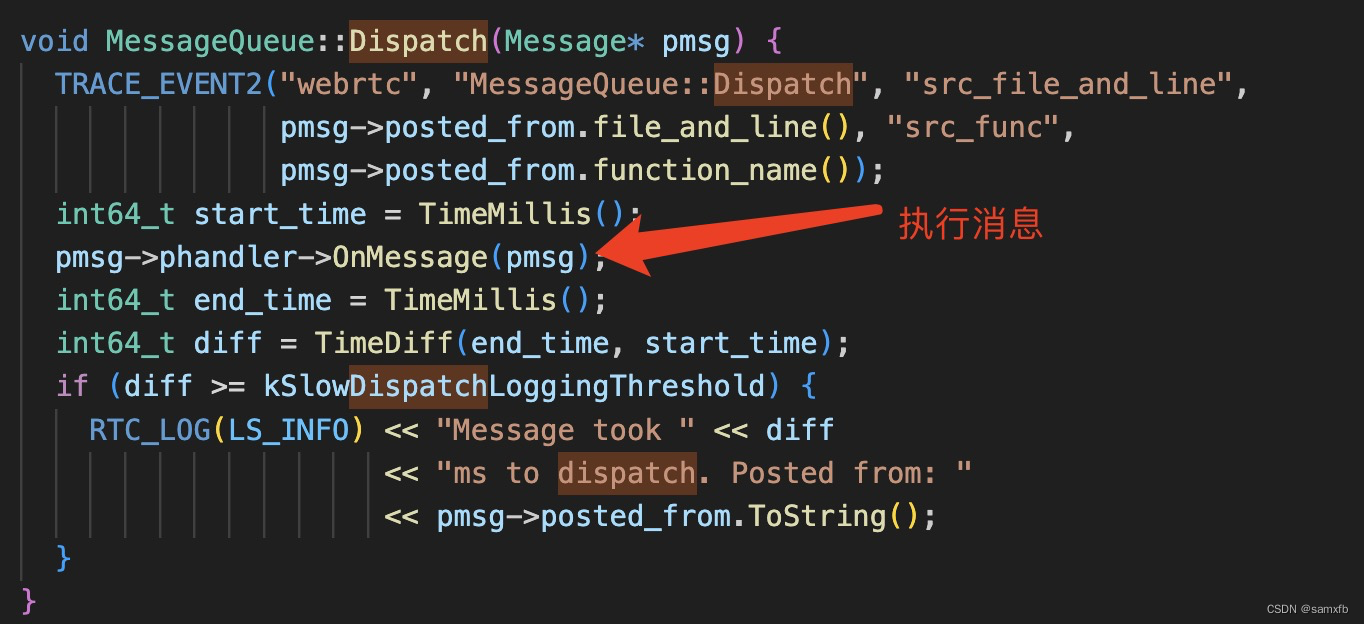

    因为执行消息，实际上就是执行OnMessage（详见Dispatch接口实现）



    上一章节其实已经把三种任务提交方式介绍过了

    1、同步阻塞调用（Send，Invoke）

    Invoke其实最终也是调用Send，Invoke是个函数模版，可以非常方便在目标执行线程执行函数然后获得返回值，Invoke实现如下：

      // Convenience method to invoke a functor on another thread.  Caller must
      // provide the |ReturnT| template argument, which cannot (easily) be deduced.
      // Uses Send() internally, which blocks the current thread until execution
      // is complete.
      // Ex: bool result = thread.Invoke(RTC_FROM_HERE,
      // &MyFunctionReturningBool);
      // NOTE: This function can only be called when synchronous calls are allowed.
      // See ScopedDisallowBlockingCalls for details.
      template
      ReturnT Invoke(const Location& posted_from, FunctorT&& functor) {
        FunctorMessageHandler handler(
            std::forward(functor));
        InvokeInternal(posted_from, &handler);
        return handler.MoveResult();
      }
    void Thread::InvokeInternal(const Location& posted_from,
                                MessageHandler* handler) {
      TRACE_EVENT2("webrtc", "Thread::Invoke", "src_file_and_line",
                   posted_from.file_and_line(), "src_func",
                   posted_from.function_name());
      Send(posted_from, handler);
    }


    调用方式举例：

    bool result = thread.Invoke(RTC_FROM_HERE, &MyFunctionReturningBool);


    2、异步非阻塞延迟调用

    PostDelayed和PostAt

    3、异步非阻塞调用

    Post

    线程退出Stop

    void Thread::Stop() {
      MessageQueue::Quit();
      Join();
    }
    void MessageQueue::Quit() {
      AtomicOps::ReleaseStore(&stop_, 1);
      WakeUpSocketServer();
    }
    void Thread::Join() {
      if (!IsRunning())
        return;
      RTC_DCHECK(!IsCurrent());
      if (Current() && !Current()->blocking_calls_allowed_) {
        RTC_LOG(LS_WARNING) << "Waiting for the thread to join, "
                            << "but blocking calls have been disallowed";
      }
    #if defined(WEBRTC_WIN)
      RTC_DCHECK(thread_ != nullptr);
      WaitForSingleObject(thread_, INFINITE);
      CloseHandle(thread_);
      thread_ = nullptr;
      thread_id_ = 0;
    #elif defined(WEBRTC_POSIX)
      pthread_join(thread_, nullptr);
      thread_ = 0;
    #endif
    }
